Exposure Summary
This report generates an exposure plot for all subjects in a study for an investigational product by dose and exposure time for the safety population treatment. The exposure plot is generated for all subjects across any time of exposure. In addition, summary statistics for the exposure are generated and displayed.
Report Results Description

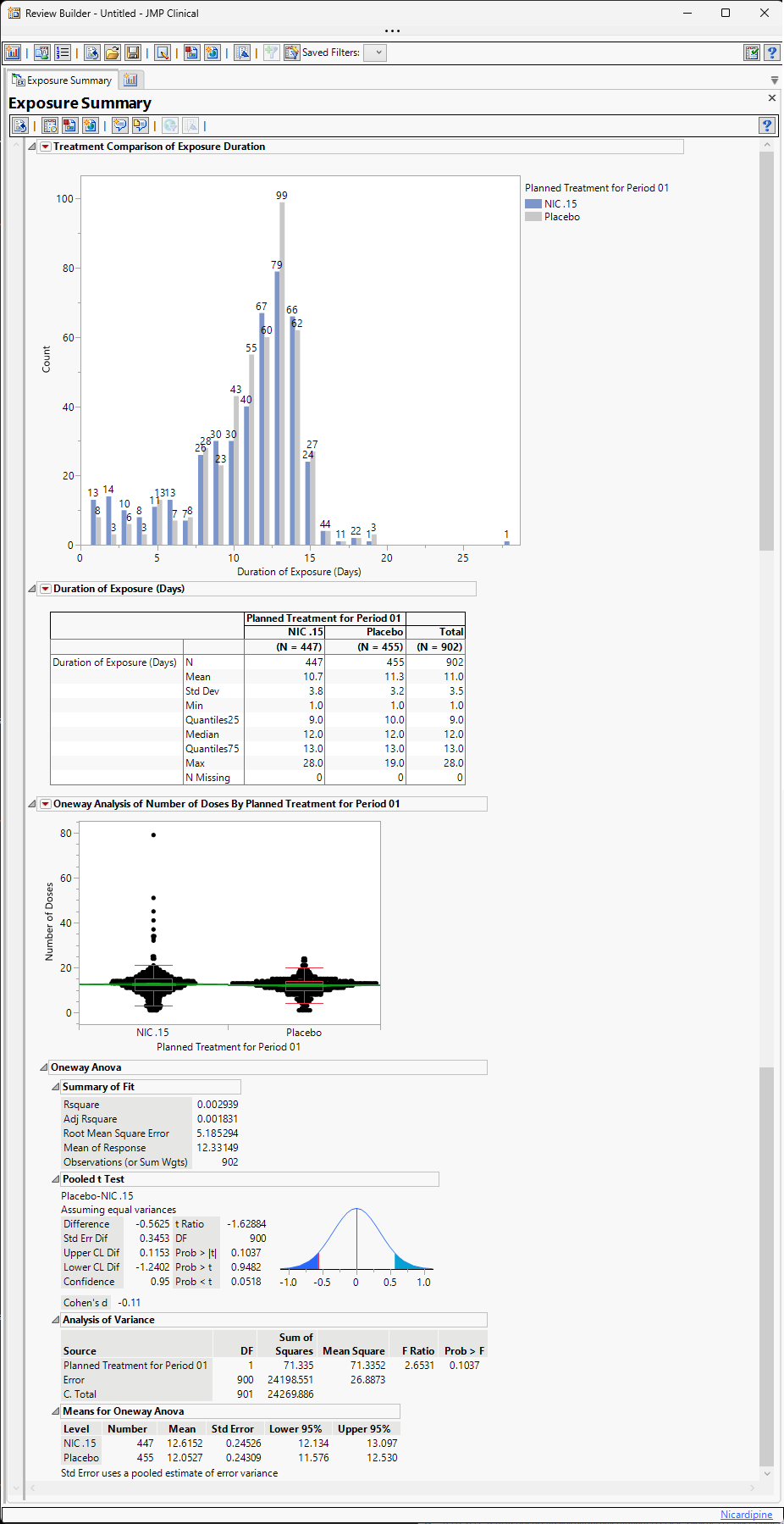

Running Exposure Summary for Nicardipine using default settings generates the Report shown below.
The Report contains the following elements:

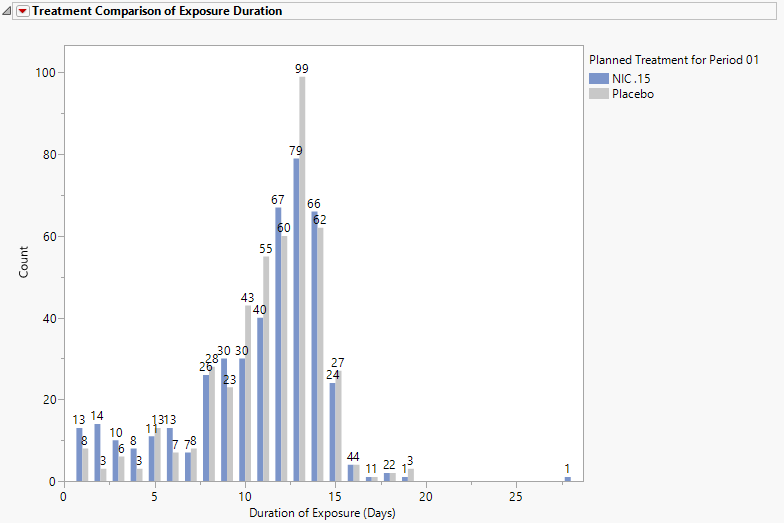

Treatment Comparison of Exposure Duration
A histogram showing Exposure Duration calculated by summing the number of doses over study day by subject.

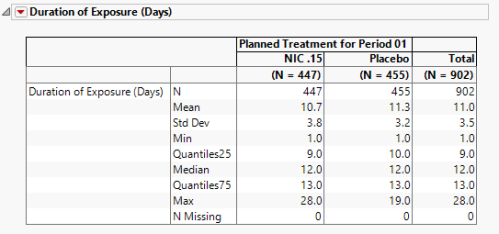

Duration of Exposure Days
A summary of the number of subjects in each treatment group is displayed in tabular format..

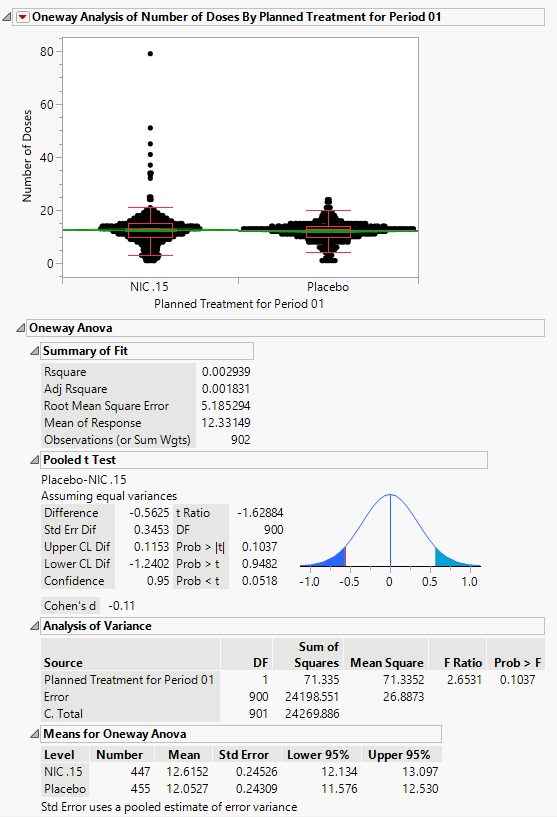

Oneway Analysis
This report performs aone-way ANOVA (analysis of variance) to detect statistical differences for the number of doses subjects in each treatment arm.
The One-way Plot above shows the distribution of subjects by the number of doses for each of the two treatment arms. The analysis statistics are listed in the tables below the plot.
General and Drill Down Buttons
Action buttons, provide you with an easy way to drill down into your data. The following action buttons are generated by this report:
| • | Click  to rerun the report using default settings. |
| • | Click  to view the associated data tables. Refer to Show Tables/View Data for more information. |
| • | Click  to generate a standardized pdf- or rtf-formatted report containing the plots and charts of selected sections. |
| • | Click  to generate a JMP Live report. Refer to Create Live Report for more information. |
| • | Click  to take notes, and store them in a central location. Refer to Add Notes for more information. |
| • | Click  to read user-generated notes. Refer to View Notes for more information. |
| • | Click  to open and view the Review Subject Filter. |
| • | Click  to specify Derived Population Flags that enable you to divided the subject population into two distinct groups based on whether they meet very specific criteria. |
Default Settings
Refer to Set Study Preferences for default Subject Level settings.
