Align Shapes

1.

To vertically align the shapes for Hard Drives and Peripherals, select the components:

–

–

Tip: To select shapes, drag the cursor around the shapes or press Shift and click each shape.

2.

With the shapes selected, right-click on one of the shapes and select Align Selected Vertices Vertically.

3.

To horizontally align the remaining shapes, select the following components:

–

–

–

–

–

–

–

4.

With the shapes selected, right-click on one of the shapes and select Align Selected Vertices Horizontally.

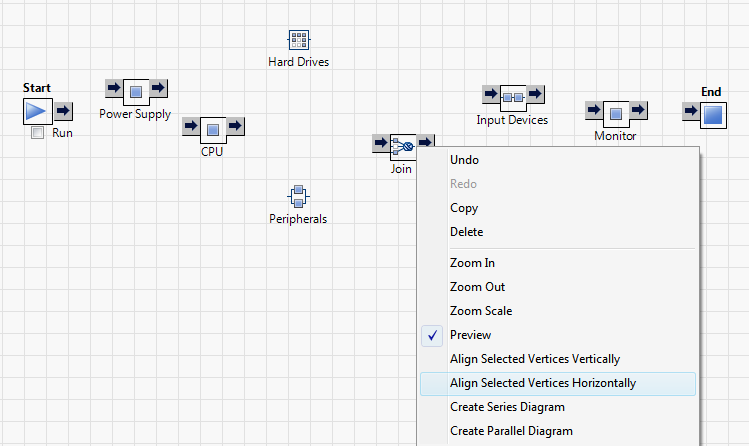

Align Shapes Horizontally

5.

Proceed with Connect Shapes.

•
