1.
Select Help > Sample Data Library and open Car Poll.jmp.
2.
Select Analyze > Consumer Research > Multiple Correspondence Analysis.
3.
Select sex, marital status, country, and size and click Y, Response.
4.

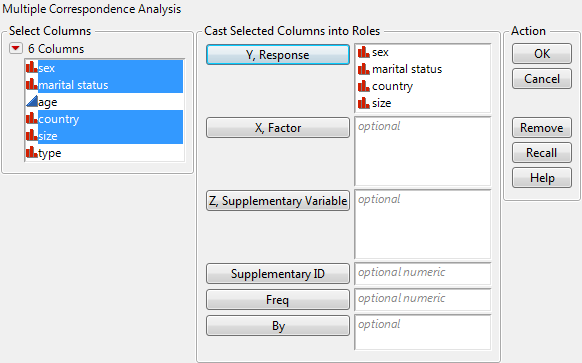

Completed Multiple Correspondence Analysis Launch Window

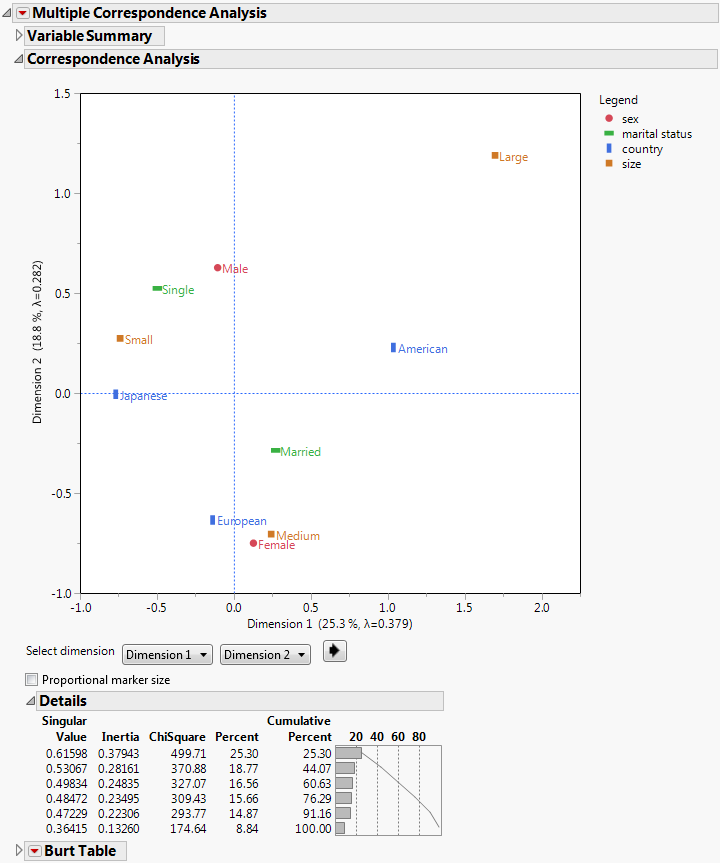

The Multiple Correspondence Analysis report is shown in Multiple Correspondence Analysis Report. Note that some of the outlines are closed because of space considerations.
Multiple Correspondence Analysis Report
