Example of the Custom Profiler

This example uses data that demonstrates the flow of water through a borehole that is drilled from the ground surface through two aquifers. You want to optimize the predicted value.

1.

Select Help > Sample Data Library > Design Experiment and open Borehole Latin Hypercube.jmp

2.

Select Graph > Custom Profiler.

3.

Select prediction formula and click Y, Prediction Formula.

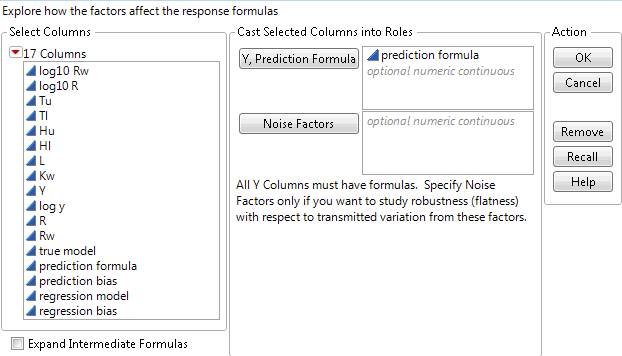

Completed Custom Profiler Launch Window

4.

Note that the Benchmark value is 70.83. The Current Y value is also 70.83. This value is the predicted response with all factors set to their mean values.

5.

In the Custom Profiler Report, click Optimize.

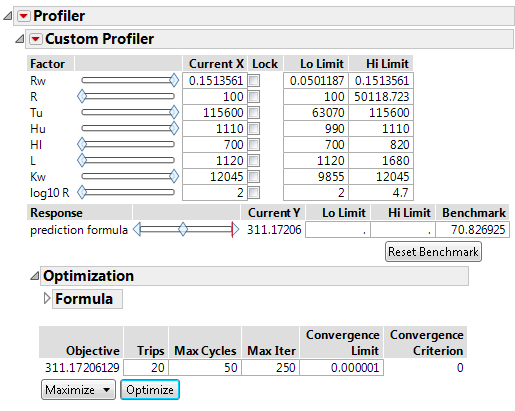

Custom Profiler Report after Optimization

The optimization routine found an optimum predicted response at 311.17. In order to obtain the optimum of 311.17, all factors are set either at their minimum or maximum values. The optimum is greater than the initial Benchmark value of 70.83.

•
