Example using Graph Builder
To create the same plots shown above using Graph Builder, follow these steps:
1.
Select Help > Sample Data Library and open Cities.jmp.
2.
Select Graph > Graph Builder.
3.
Click and drag OZONE to the Y zone.
4.
Click and drag city to the X zone.
5.
Click the Bar icon.
6.
Click Done.

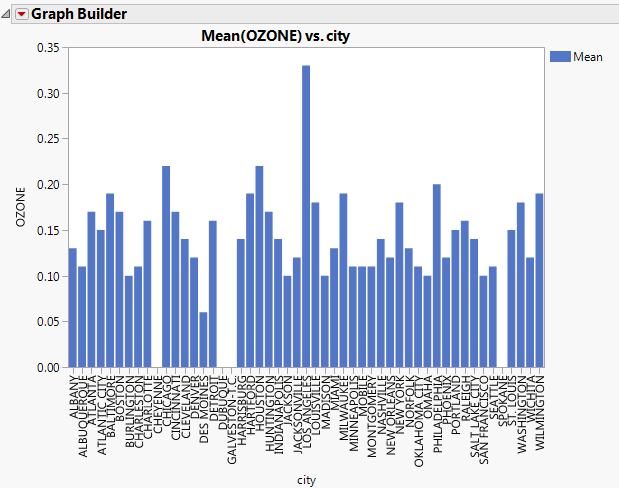

Bar Chart in Graph Builder
7.
Return to the Cities.jmp sample data table.
8.
Select Graph > Graph Builder.
9.
Click and drag OZONE to the Y zone.
10.
Click and drag city to the X zone.
11.
Click and drag OZONE to the Color zone.
12.
Click and drag POP (population) to the Size zone.
13.
Click the Treemap icon.
14.
Click Done.

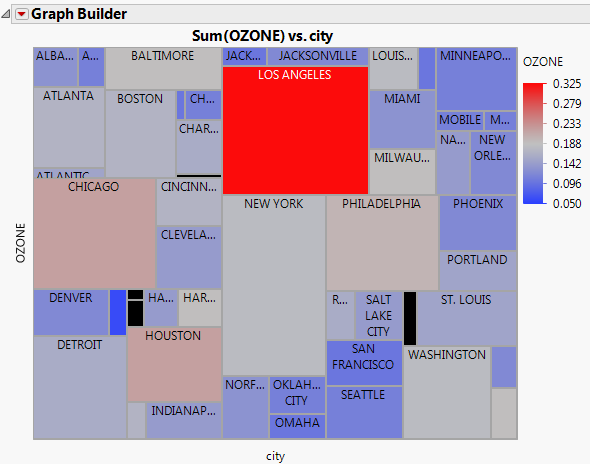

Treemap in Graph Builder
