Output Options
Use the Output Options panel to perform the following tasks:
•
specify how you want the custom design data table to appear
•
construct the design table
•
return to a previous point in the Custom Design window
In most cases, the Output Options panel appears as shown in Output Options Panel.
Output Options Panel
The Output Options panel contains these options:
•
Run Order
•
Make Table
•
Back
Run Order
The Run Order options determine the order of the runs in the design table. Choices include the following:
Keep the Same
Rows in the design table are in the same order as in the Design outline.
Sort Left to Right
Columns in the design table are sorted from left to right.
Randomize
Rows in the design table are in random order.
Sort Right to Left
Columns in the design table are sorted from right to left.
Randomize within Blocks
Rows in the design table are in random order within the blocks.
Make Table
Click Make Table to construct the custom design data table. In the Custom Design table, the Table panel (in the upper left) can contain scripts, as appropriate given your design. The Model, Evaluate Design, and DOE Dialog scripts are always provided. To run a script, click the green triangle next to the script name.

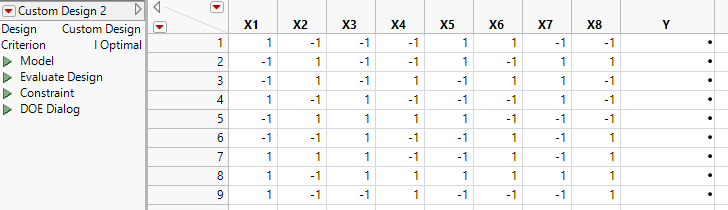

Custom Design Table Showing Scripts
Possible scripts include the following:
Model
Runs the Analyze > Fit Model platform. The model described by the script is determined by your choices in the Model outline and by the type of design.
Evaluate Design
Runs the DOE > Design Diagnostics > Evaluate Design platform. The model described by the script is determined by your choices in the Model outline and by the type of design.
Constraint
Shows model constraints that you entered in the Define Factor Constraints outline using the Specify Linear Constraints option.
Disallowed Combinations
Shows model constraints that you entered in the Define Factor Constraints outline using the Use Disallowed Combinations Filter or the Use Disallowed Combinations Script options.
DOE Dialog
Re-creates the Custom Design window that you used to generate the design table. The script also contains the random seed used to generate your design.
Back
The Back button takes you back to where you were before clicking Make Design. You can make changes to the previous outlines and regenerate the design.
Note: If you attempt to remove all factors after clicking the Back button, one continuous factor remains. You can delete the continuous factor after new factors are added.
