Output Options
Use the Output Options panel to perform the following tasks:
•
specify the order for the runs in the design data table
•
construct the design table
•
return to a previous point in the Definitive Screening Design window
Output Options Panel
The Output Options panel contains these options:
Run Order
The Run Order options determine the order of the runs in the design table. Choices include the following:
Keep the Same
Rows in the design table are in the same order as in the Design outline.
Sort Left to Right
Columns in the design table are sorted from left to right.
Randomize
Rows in the design table are in random order.
Sort Right to Left
Columns in the design table are sorted from right to left.
Randomize within Blocks
Rows in the design table are in random order within the blocks.
Make Table
Click Make Table to construct the Definitive Screening Design data table.
In the Definitive Screening Design table, the Table panel (in the upper left) contains the following scripts. To run a script, click the green triangle next to the script name.
Fit Definitive Screening
Runs the DOE > Definitive Screening > Fit Definitive Screening platform. See The Fit Definitive Screening Platform.
Evaluate Design
Runs the DOE > Design Diagnostics > Evaluate Design platform. See Evaluate Designs.
DOE Dialog
Re-creates the Definitive Screening Design window that you used to generate the design table.

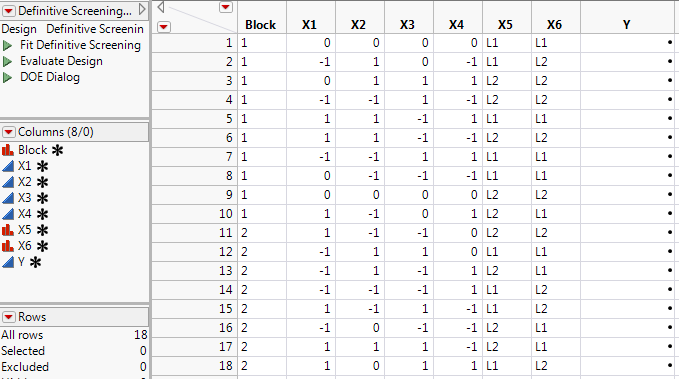

Definitive Screening Design Table Showing Scripts
Back
The Back button takes you back to where you were before clicking Make Design. You can make changes to the previous outlines and regenerate the design.
