Construct a response surface design for three continuous factors that you have identified as active. You want to find process settings to maintain your response(Y) within specifications. The lower and upper specification limits for Y are 54 and 56, respectively, with a target of 55.
|
1.
|
Select DOE > Custom Design.
|
|
2.
|
|
3.
|
|
4.
|
Leave Importance blank.
|
|
5.
|
Type 3 next to Add N Factors.
|
|
6.
|
Click Add Factor > Continuous.
|
|
7.
|
Click Continue.
|
|
8.
|
In the Model outline, click the RSM button.
|
Note: Setting the Random Seed in step 9 and Number of Starts in step 10 reproduces the exact results shown in this example. In constructing a design on your own, these steps are not necessary.
|
9.
|
(Optional) From the Custom Design red triangle menu, select Set Random Seed, type 929281409, and click OK.
|
|
10.
|
(Optional) From the Custom Design red triangle menu, select Number of Starts, type 40, and click OK.
|
|
11.
|
Click Make Design.
|

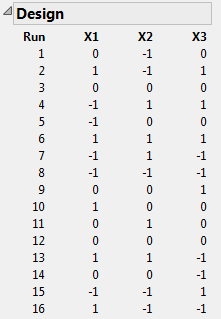

In order to estimate quadratic effects, a response surface design uses three levels for each factor. Note that the design in RSM Design is a face-centered Central Composite Design with two center points.
|
12.
|
Open the Design Evaluation > Design Diagnostics outline.
|
|
13.
|

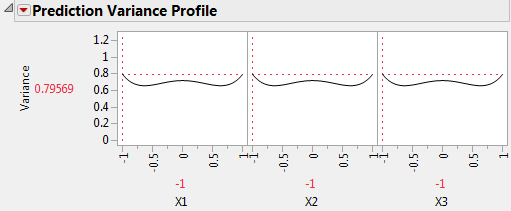

Open the Design Evaluation > Prediction Variance Profile outline.
|
The vertical axis shows the relative prediction variance of the expected value of the response. The relative prediction variance is the prediction variance divided by the error variance. When the relative prediction variance is one, its absolute variance equals the error variance of the regression model.
|
14.
|

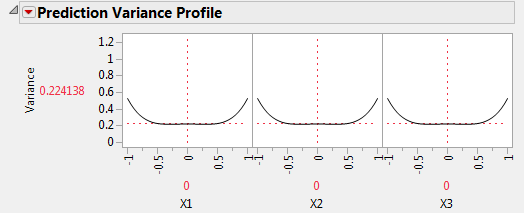

Select Optimization and Desirability > Maximize Desirability from the red triangle menu next to Prediction Variance Profile outline.
|
|
15.
|
Open the Design Evaluation > Fraction of Design Space Plot outline.
|
The Custom RSM.jmp sample data table contains the results of the experiment. The Model script opens a Fit Model window showing all of the effects specified in the DOE window’s Model outline. This script was saved to the data table by the Custom Design platform.
|
1.
|
|
2.
|
In the Table panel, click the green triangle next to the Model script.
|
|
3.
|
Click Run.
|

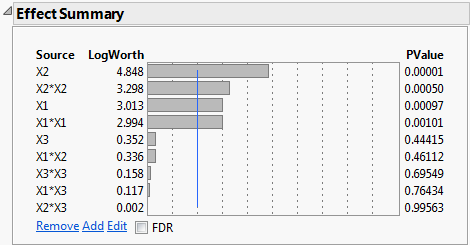

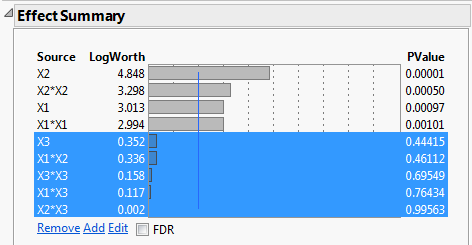

The report shows that X1, X2, X1*X1, and X2*X2 are significant at the 0.01 level. None of the other effects are significant at even the 0.10 level. Reduce the model by removing these insignificant effects.
|
4.
|
|
5.
|
Click Remove.
|
The Fit Least Squares report is updated to show a model containing only the significant effects: X1, X2, X1*X1, and X2*X2.

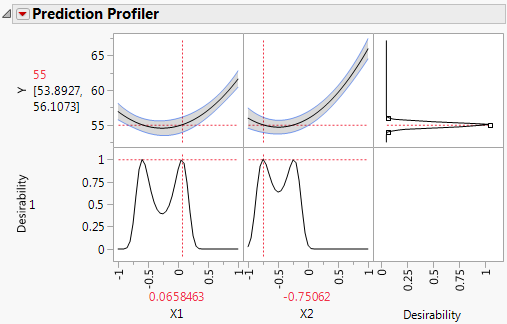

Use the Prediction Profiler (at the bottom of the Fit Least Squares window) to explore how the predicted response (Y) changes as you vary the factors X1 and X2. Note the quadratic behavior of Y across the values of X1 and X2.
Remember that you entered response limits for Y in the Responses outline of the Custom Design window. As a result, the Response Limit column property is attached to the Y column in the design table. The Desirability function for Y (in the top plot at right) is based on the information contained in the Response Limit column property. JMP uses this function to calculate Desirability as a function of the settings of X1 and X2. The traces of the Desirability function appear in the bottom row of plots.
|
6.
|
In the Prediction Profiler report, select Optimization and Desirability > Maximize Desirability from the red triangle options.
|
The predicted response achieves the target value of 55 at the process settings shown in red above X1 and X2. Prediction Profiler with Desirability Maximized shows that a value of X1 near –0.65 also achieves a predicted value of 55 when X2 = -0.75062. In fact, your Prediction Profiler might show different settings as those that maximize desirability. This is because the predicted response is 55 for many settings of X1 and X2.
|
7.
|

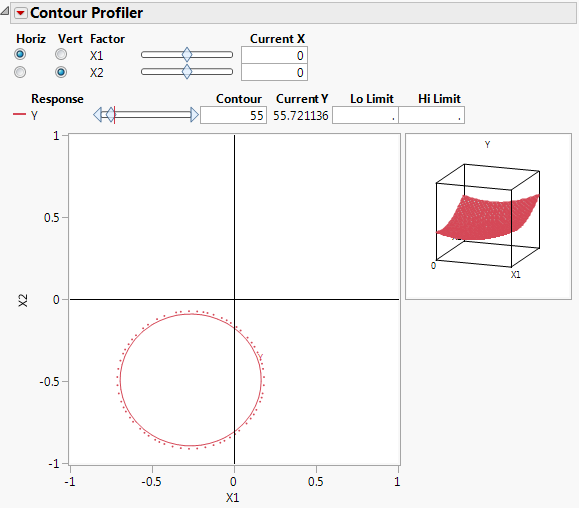

Select Factor Profiling > Contour Profiler from the red triangle next to Response Y.
|
The settings of X1 and X2 that correspond to the red contour have predicted response values of 55. You might want to select from among these process settings based on cost efficiency.
