The Stock Prices.jmp sample data table contains data for the dates and values of a stock over time. The variable YearWeek is a computed column representing the year and week in a single variable. Use a range chart to show the high, low, and average close values for each stock. For those weeks where data exists for multiple days, the average of the values is plotted.
1.
Select Help > Sample Data Library and open Stock Prices.jmp.
2.
Select Graph > Legacy > Chart.
3.
Select YearWeek and click Categories, X, Levels.
4.
Select High and click Statistics.
5.
Select Max from the menu of statistics.
6.
Select Low and click Statistics.
7.
Select Min from the menu of statistics.
8.
Select Close and click Statistics.
9.
Select Mean from the menu of statistics.
10.
11.
Select Range Chart from the red triangle menu for Chart.

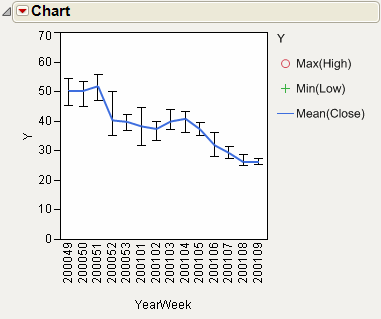

Figure 13.19 Example of a Combined Range and Line Chart
