Example Using a Grouping Variable
This example shows you how to create a scatterplot matrix using a grouping variable.
1.
Select Help > Sample Data Library and open Iris.jmp.
2.
Select Graph > Scatterplot Matrix.
3.
Select Sepal length, Sepal width, Petal length, and Petal width and click Y, Columns.
4.
Select Species and click Group.
5.
Click OK.

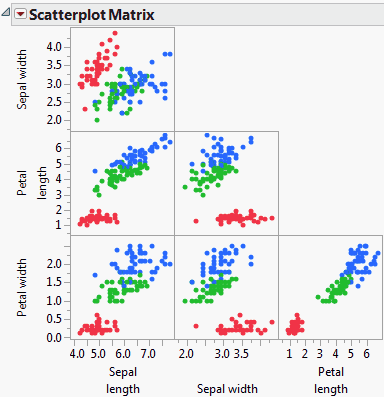

Figure 11.7 Initial Example Using a Grouping Variable
To make the groupings stand out, proceed as follows:
6.
From the red triangle menu, select Density Ellipses > Density Ellipses.
7.
From the red triangle menu, select Density Ellipses > Shaded Ellipses.

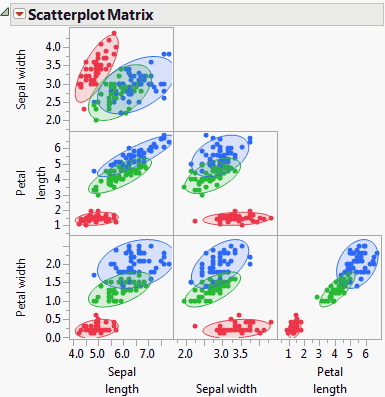

Figure 11.8 Example of a Scatterplot Matrix with Ellipses
