Example Using Mixture Constraints
1.
Select Help > Sample Data Library and open Plasticizer.jmp.
The p1, p2, and p3 columns all have Mixture Column Properties defined.
2.
From the Graph menu, select Ternary Plot.
3.
Select p1, p2, and p3 and click X, Plotting.
4.
Click OK.

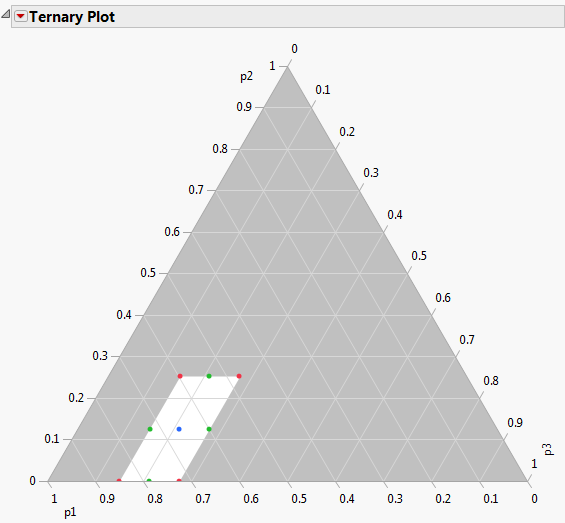

Figure 12.7 Mixture Constraints in a Ternary Plot
For more information about mixtures, see Mixture Profiler in the Profilers book.
