Plot Multiple Statistics with Two X Variables
When you assign two category variables, the result is a chart that shows the statistics for each level of the second category variable. This variable is nested within each level of the first category variable. The chart shows each Y side by side, using a common axis.
1.
Select Help > Sample Data Library and open Companies.jmp.
2.
Select Graph > Legacy > Chart.
3.
Select Type and click Categories, X, Levels.
4.
Select Size Co and click Categories, X, Levels.
5.
Select Sales ($M) and Profits ($M) and click Statistics.
6.
Select Mean from the menu of statistics.
7.
Click OK.
The chart on the left in Figure 13.14 shows the result.
8.
To see a separate chart for each statistic, click to deselect Overlay from the red triangle menu for Chart.
The chart on the right in Figure 13.14 shows the result.

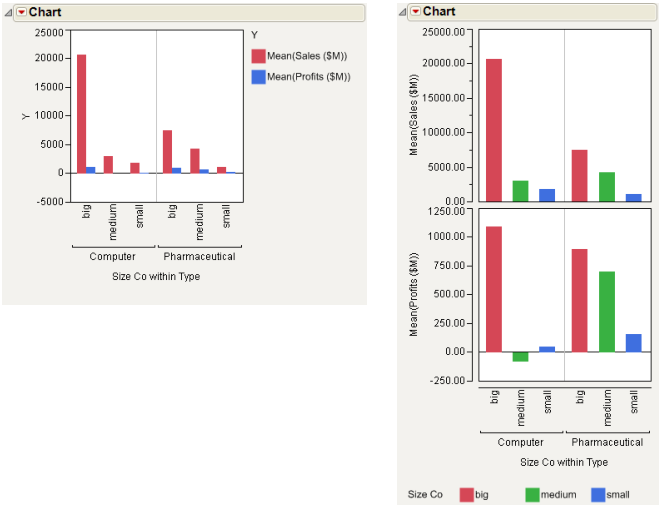

Figure 13.14 Examples of Charts with Two Statistics and Two Categories
