Repairable Systems Simulation
Estimate Outage Time for a Complex System
The Repairable Systems Simulation platform is available only in JMP Pro.
The Repairable Systems Simulation (RSS) platform enables you to explore the reliability within complex repairable systems. A repairable system consists of individual components that age and require maintenance. The state of a repairable system changes as its components fail and are subsequently repaired.
Repairable systems are involved in many aspects of modern life. They can range in size from refrigerators and houses to power plants and telephone communication networks.
The RSS platform enables you to simulate different system configurations in order to optimize your repairable system. For example, you can extend the useful life of costly components or maximize production outputs while maintaining a safe system operation.

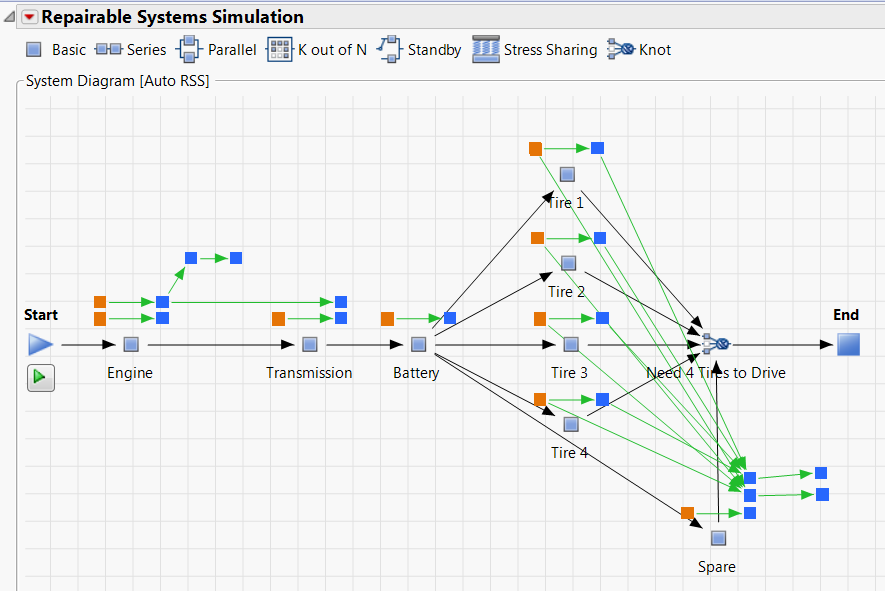

Figure 11.1 Example of a Repairable Systems Simulation Diagram
Contents
Overview of the Repairable Systems Simulation Platform
Example Using the Repairable Systems Simulation Platform
The Repairable Systems Simulation Window
System Diagram
Shapes Toolbar
Configuration Panel
Add Event Panel
Add Action Panel
Repairable Systems Simulation Platform Options
Options for Block Items
Distribution Options
Specify a Nonparametric or Estimated Distribution
Event Settings
Action Settings
Repairable Systems Simulation Results
Results Table
Results Explorer
Repairable Systems Simulation Results Options
RSS Results Explorer Point Estimation Profilers
