Additional Example of the Time Series Platform

This example uses the SeriesP.jmp sample data table to show how to perform a time series analysis. You first create a new column that is appropriate for the Time ID.

Create Appropriate Time ID Column

Select Help > Sample Data Library and open Time Series/SeriesP.jmp.

The SeriesP.jmp data table contains a Year column and a Quarter column to identify the time period during which the responses were observed. However, the Time Series platform requires one column with unique, equally spaced time points to label the X axis. If no Time ID is specified, then the row number is used to identify the time periods. To avoid this and make the report easier to interpret, you construct a Time ID column from Year and Quarter.

Select Cols > New Columns. In the Column Name box, type Year.Quarter.

Select Column Properties > Formula.

Select Year and then click the plus sign.

Select Quarter and then click the division sign. Type in 4 and press Enter.

Click OK.

The completed New Column dialog box should appear as in Figure 16.16.

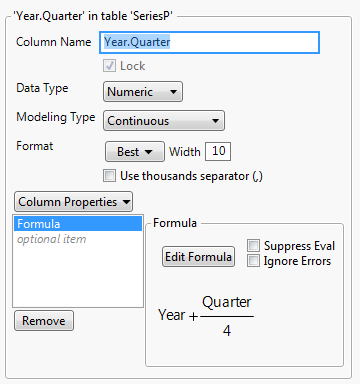

Figure 16.16 New Column

Click OK.

Time Series Analysis

Now that the data table contains an appropriate Time ID column, proceed with the analysis.

Select Analyze > Specialized Modeling > Time Series.

Select GDP and click Y, Time Series.

Select Year.Quarter and click X, Time ID.

Click OK.

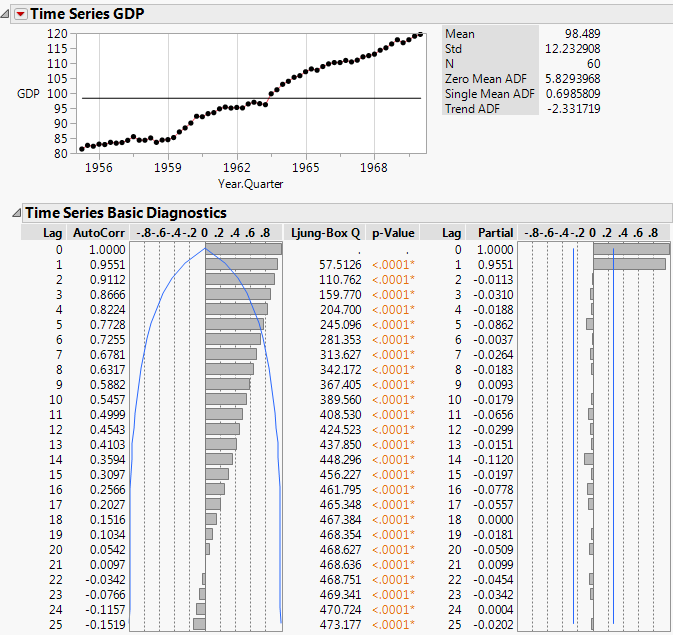

Figure 16.17 Time Series Report for SeriesP.jmp

The series shows an increasing trend over time that is fairly linear. In addition, the autocorrelation chart shows that there is strong correlation between points that are close together. The AutoCorr values for points with lags of 1, 2, and 3 are 0.9551, 0.9112, 0.8666, respectively.

Click the Time Series GDP red triangle and select Difference.

Select 1 for the Nonseasonal Differencing Order and click Estimate.

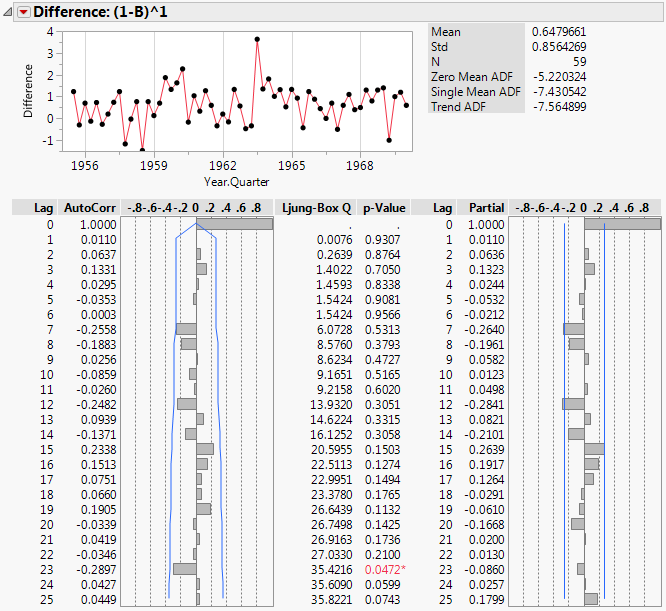

Figure 16.18 Difference Report for SeriesP.jmp

The Difference report helps determine an appropriate model to be fit to the original time series. The plot of differences shows that the differenced series no longer has the trend that was observed in the original data. This indicates that lag-1 differencing is an appropriate choice. Also, even after removing the trend, the series shows no sign of seasonality. For these reasons, models to fit the original series should be able to handle linear trends, but do not necessarily need to handle seasonality. Linear exponential smoothing and ARIMA models would be appropriate.

Click the Time Series GDP red triangle and select Smoothing Model > Linear Exponential Smoothing.

Click Estimate.

Click the Time Series GDP red triangle and select ARIMA Model Group. This enables you to fit multiple ARIMA models for a range of values of (p,d,q)(P,D,Q).

10.

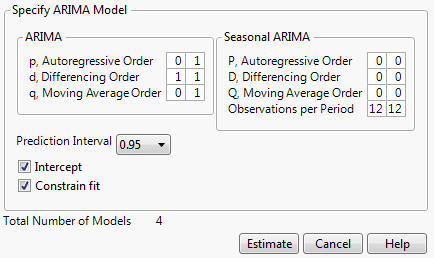

In the ARIMA box, set the following ranges:

–

Fix d, the differencing order, at 1 by setting the range from 1 to 1 because the differencing report showed lag-1 differencing was appropriate.

–

Set p, the autoregressive order, to range from 0 to 1 because the original series showed evidence of autocorrelation.

–

Set q, the moving average order, to range from 0 to 1.

Note: In most cases, it is sufficient to keep p and q small.

–

Leave P, D, and Q set at 0, since the series showed no evidence of seasonality.

These settings lead to the fitting of 4 total models.
