Example of Combining Windows

You can quickly create dashboards by merging several open windows in JMP. Combining windows provides options to view a summary of statistics and include a selection filter.

1.

Select Help > Sample Data Library and open Birth Death.jmp.

2.

Run the Distribution and Bivariate table scripts.

3.

Select Window > Combine Windows.

The Combine Windows window appears.

Tip: On Windows, you can also select Combine Windows from the Arrange Menu option in the lower right corner of JMP windows.

4.

Select Summary Report View to display the graphs and omit the statistical reports

5.

In the Combine column, select Birth Death - Bivariate of death by birth and Birth Death - Distribution.

6.

In the Filter By column, select Birth Death - Distribution.

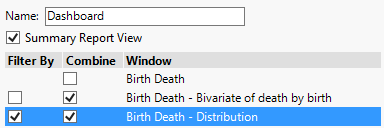

Figure .21 Combine Windows Options

7.

The two reports are combined into one window. Notice the filter icon

at the top of the Distribution report. When you select a bar in one of the histograms, the corresponding data in the Bivariate graph are selected.

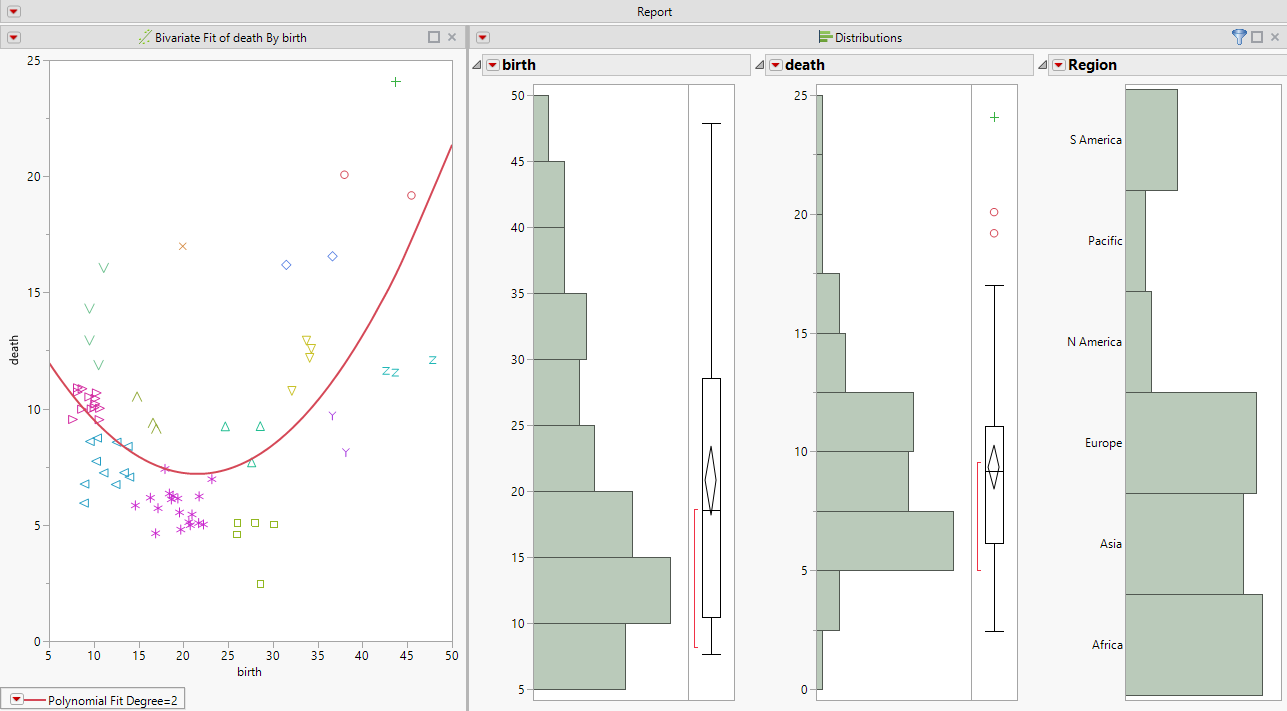

Figure .22 Combined Windows

•
