Example of Saving an Adobe Flash Version of a Bubble Plot

JMP Support 800.450.0135 (US)

Documentation Feedback
Your feedback is important to us. us any comments about our documentation.

For the latest version of JMP Help, visit JMP.com/help.

•

Select Help > Sample Data Library and open PopAgeGroup.jmp.

Select Graph > Bubble Plot.

Select Portion60+ and click Y.

Select Portion 0-19 and click X.

Select Country and click ID.

Select Year and click Time.

Select Pop and click Sizes.

Select Region and click Coloring.

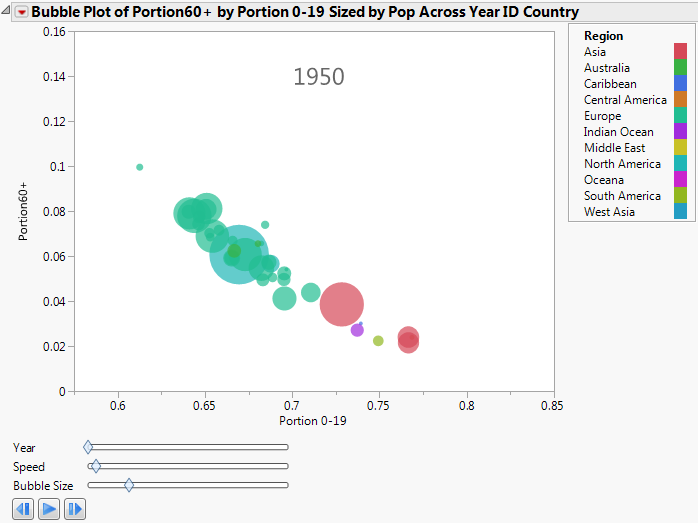

Figure .19 Initial Bubble Plot

Select Save for Adobe Flash Platform (SWF) from the red triangle menu.

In the Save As SWF window, select the location to which you want to save the file.

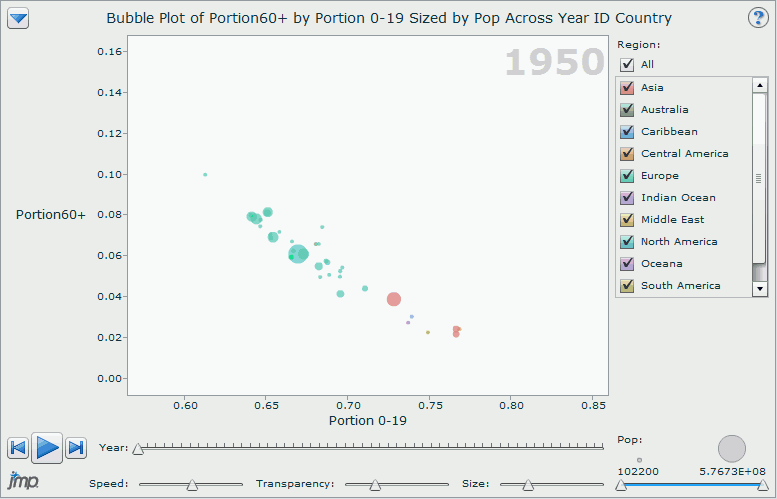

Click Save. The Adobe Flash version of the Bubble Plot is saved as HTML and appears in a web browser.

•

•

•
