Example of Submitting SAS Code

Select Help > Sample Data Library and open Candy Bars.jmp.

Select Analyze > Fit Model.

Select Calories and click Y.

Select Total fat g, Carbohydrate g, and Protein g, and click Add.

From the red triangle menu for Model Specification, select Submit to SAS.

In the Connect to SAS Server window (see Figure .10), choose a method to connect to SAS (if you are not already connected). For this example, select Connect to SAS on this machine.

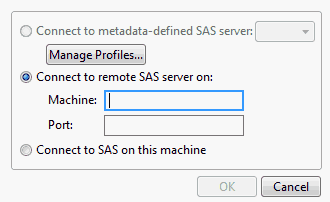

Figure .10 Connect to SAS Server

Click OK.

JMP connects to SAS. SAS runs the model and sends the results back to JMP. The results can appear as SAS output, HTML, RTF, PDF, or JMP report format (you can choose the format using JMP Preferences). Figure .11 shows the results formatted as a JMP report. For details, see Import Data from SAS in the Using JMP book.

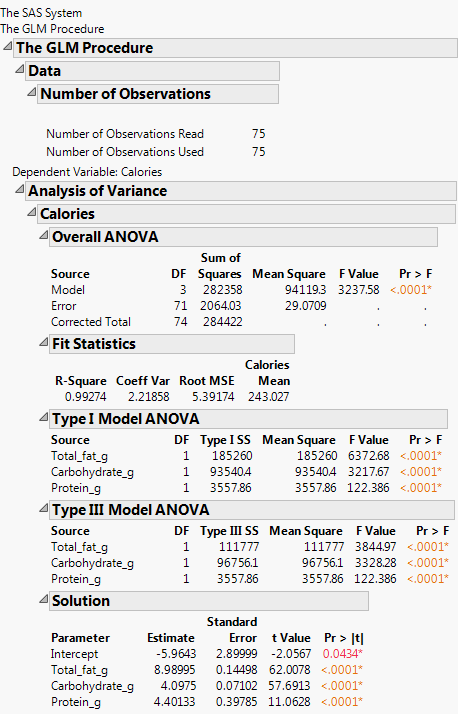

Figure .11 SAS Results Formatted as a JMP Report

•
