This example uses the Tiretread.jmp sample data table. There are three factors (SILICA, SILANE, and SULFUR) and four responses (ABRASION, MODULUS, ELONG, and HARDNESS). This data table already contains saved prediction formula columns for the four response variables. Use these prediction formula columns to examine the surfaces of two of the response variables.
|
1.
|
|
2.
|
Select Graph > Surface Plot.
|
|
3.
|
Figure 5.2 Initial Surface Plot Report
|
4.
|
In the Dependent Variables report, select Both Sides from the Surface list for Pred Formula MODULUS.
|
|
5.
|
Click the Surface Plot red triangle and select Scale response axes independently.
|

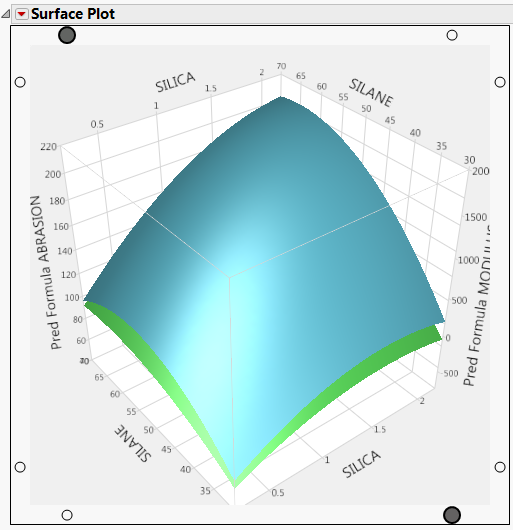

Figure 5.3 Prediction Surface for ABRASION and MODULUS
Pred Formula ABRASON is on one Z axis and Pred Formula MODULUS is on the other Z axis. Each response has its own scale. In this plot, the two factors considered are SILICA and SILANE. You can rotate the surface plot by clicking and dragging inside the graph. This enables you to view the prediction surfaces from different perspectives. For example, in Figure 5.4, you can see that predictions for ABRASION and MODULUS based on the two listed predictors have a similar surface shape, just on a different scale. Use the Independent Variables controls to see how different combinations of predictors affect the surface plot.
Tip: To see the original view after rotating, right-click anywhere on the surface plot and select Reset.

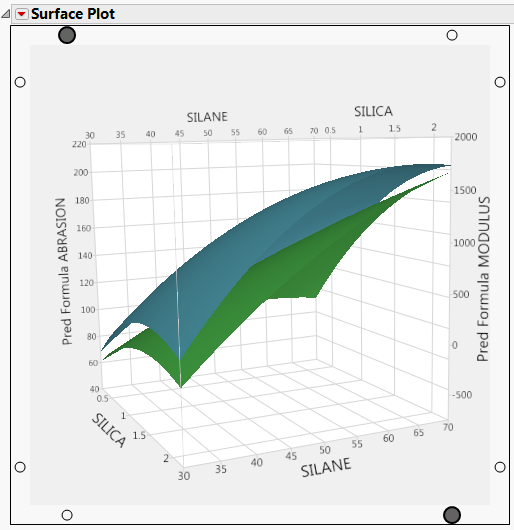

Figure 5.4 Rotated Prediction Surfaces
