Example Using a By Variable

1.

Select Help > Sample Data Library and open Lipid Data.jmp.

2.

Select Analyze > Distribution.

3.

Select Cholesterol and click Y, Columns.

4.

Select Gender and click By.

This results in a separate analysis for each level of Gender (female and male).

5.

Change the orientation of the histograms and the reports.

6.

From the red triangle next to Distributions, select Stack.

Add a smooth curve to both histograms.

7.

Hold down the Ctrl key. From the red triangle next to Cholesterol, select Continous Fit > Smooth Curve.

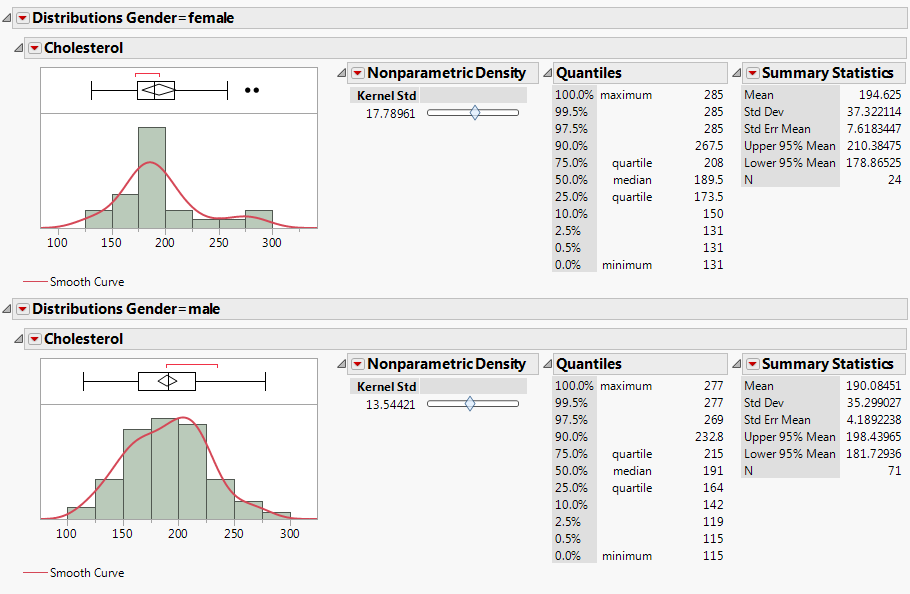

Figure 3.14 Separate Distributions by Gender

•
