Example using Graph Builder
To create the same plots shown above using Graph Builder, follow these steps:
1.
Select Help > Sample Data Library and open Cities.jmp.
2.
Select Graph > Graph Builder.
3.
Click and drag OZONE to the Y zone.
4.
Click and drag city to the X zone.
5.
Click the Bar icon.
6.
Click Done.

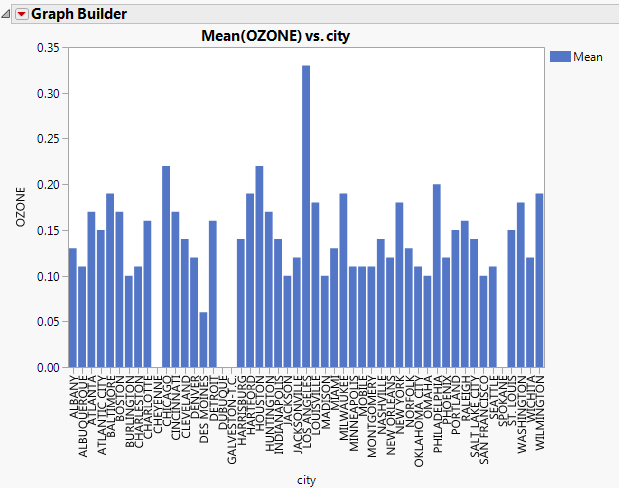

Figure 11.4 Bar Chart in Graph Builder
7.
Return to the Cities.jmp sample data table.
8.
Select Graph > Graph Builder.
9.
Click and drag OZONE to the Y zone.
10.
Click and drag city to the X zone.
11.
Click and drag OZONE to the Color zone.
12.
Click and drag POP (population) to the Size zone.
13.
Click the Treemap icon.
14.
Click Done.

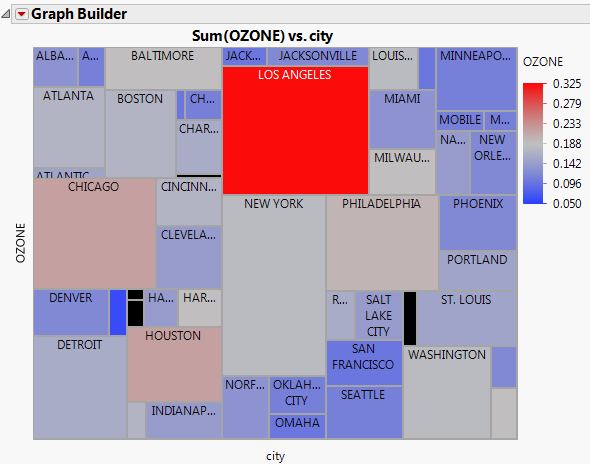

Figure 11.5 Treemap in Graph Builder
