Example Using the Fit Curve Platform

This example shows how to build a model for toxicity as a function of the concentration of a drug. You have a standard formulation of the drug and want to compare it to three new formulations.

You are interested in a toxicity ratio of surviving to non-surviving cells at a specific concentration of each drug. From prior research, you know the toxicity ratios for 16 different concentrations of each drug formulation. A lower ratio indicates more toxicity, which could be detrimental to development of the drug. Log concentration was calculated to decrease the range of concentration values and make it easier to detect differences in the curves.

Follow these steps to build the model:

Select Help > Sample Data Library and open Nonlinear Examples/Bioassay.jmp.

Select Analyze > Specialized Modeling > Fit Curve.

Assign Toxicity to the Y, Response role.

Assign log Conc to the X, Regressor role.

Assign Formulation to the Group role.

Click OK.

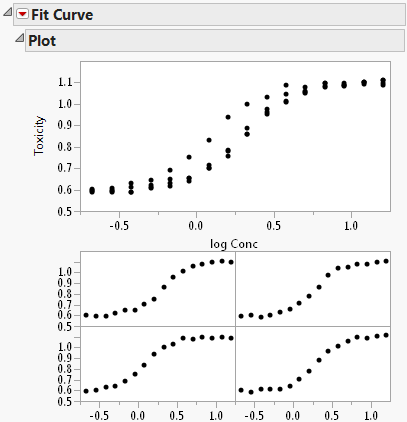

The Fit Curve Report appears as shown in Figure 12.2. The Plot report contains an overlaid plot of the fitted model of each formulation.

Figure 12.2 Initial Fit Curve Report

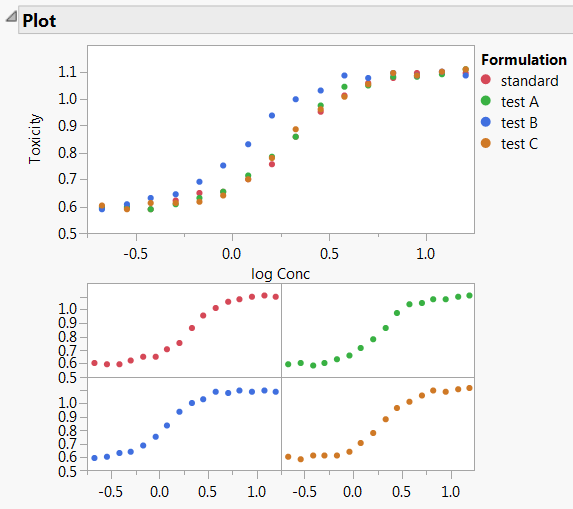

To see a legend identifying each drug formulation, right-click one of the graphs and select Row Legend. Select Formulation for the column and click OK. The plot shown in Figure 12.3 appears.

Figure 12.3 Fit Curve Report with Plot Legend

The curves appear S-shaped, so a sigmoid curve would be an appropriate fit. Table 12.1 shows formulas and graphical depictions of the different types of models that the Fit Curve platform offers.

Select Sigmoid Curves > Logistic Curves > Fit Logistic 4P from the Fit Curve red triangle menu.

Figure 12.4 Logistic 4P Report

The Logistic 4P report appears (Figure 12.4). There is also a separate plot for each drug formulation. The plot of the fitted curves suggests that formulation B might be different, because the test B curve starts to rise sooner than the others. Inflection point parameters cause this rise.

Select Compare Parameter Estimates from the Logistic 4P red triangle menu.

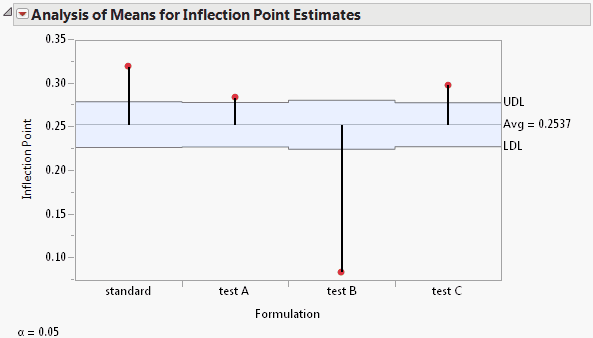

A portion of the Parameter Comparison report is shown in Figure 12.5.

Figure 12.5 Parameter Comparison Report

Notice that the Inflection Point parameter for the test B formulation is significantly lower than the average inflection point. This agrees with the plots shown in Figure 12.4. Drug formulation B has a lower toxicity ratio than the other formulations.
