2.
|
Click Add.
|
|
4.
|
Select Attributes > Knotted Spline Effect.
|
|
6.
|
Click OK.
|
Figure 2.22 shows the Regression Plot for a model fit to the data in the XYZ Stock Averages (plots).jmp sample data table. Here Date is assigned the Knotted Spline Effect and five knots are specified. DJI Close is the response.

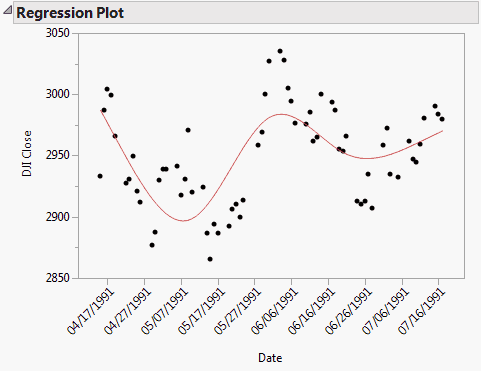

Figure 2.22 Model Fit for a Knotted Spline with Five Knots
