Plot Multiple Statistics
Chart more than one statistic in a single chart to compare them. If you do not assign an X variable, the chart displays a bar or point for each row in the data table.
1.
Select Help > Sample Data Library and open Financial.jmp.
2.
Select Graph > Legacy > Chart.
3.
Select Type and click Categories, X, Levels.
4.
Select Sales($M) and Assets($Mil.) and click Statistics.
5.
Select Mean from the menu of statistics.
6.
Click OK.

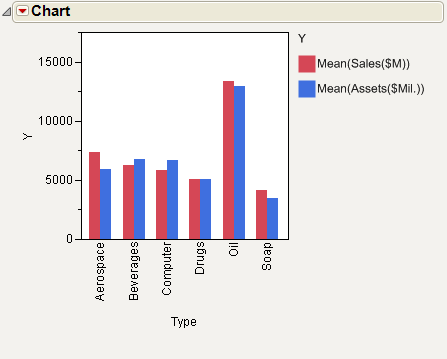

The bar chart in Figure 14.11 compares the mean of sales and assets for each type of company.
Figure 14.11 Example of a Chart with Two Statistics and One Category
