The Repairable Systems Simulation Window
Launch the Repairable Systems Simulation platform by selecting Analyze > Reliability and Survival > Repairable Systems Simulation. The Repairable Systems Simulation window is divided into the following panels:
•
System Diagram
•
Shapes Toolbar
•
Configuration Panel
•
Add Event Panel
•
Add Action Panel

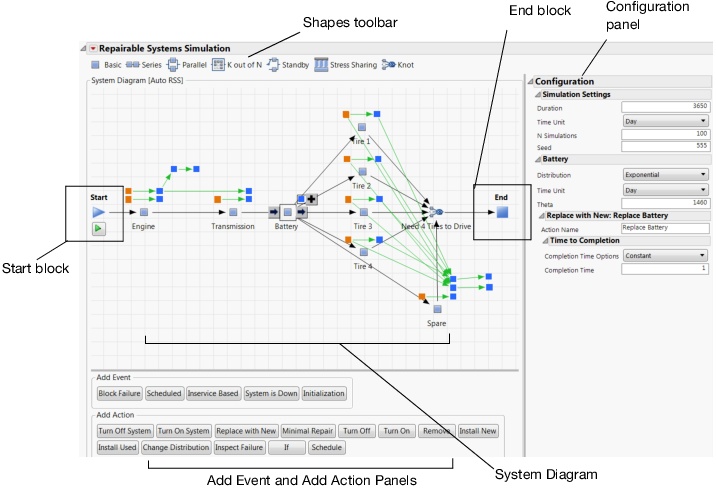

Figure 12.5 The Repairable Systems Simulation Window
