1. To vertically align the shapes for Hard Drives and Peripherals, select the components:

– Hard Drives

– Peripherals

Tip: To select shapes, drag the cursor around the shapes or press Shift and click each shape.

2. With the shapes selected, right-click one of the shapes and select Align Selected Vertices Vertically.

3. To horizontally align the remaining shapes, select the following components:

– Start

– Power Supply

– CPU

– Join

– Input Devices

– Monitor

– End

4. With the shapes selected, right-click one of the shapes and select Align Selected Vertices Horizontally.

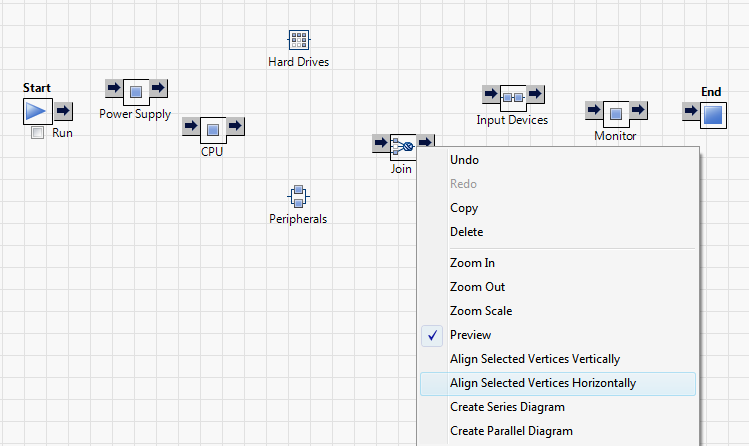

Figure 11.8 Align Shapes Horizontally

5. Proceed with Connect Shapes.
