Runs Chart Example

Runs charts display a column of data as a connected series of points. The following example is a Runs chart for the Weight variable from Coating.jmp in the Quality Control sample data folder (taken from the ASTM Manual on Presentation of Data and Control Chart Analysis).

1. Select Help > Sample Data Library and open Quality Control/Coating.jmp.

2. Select Analyze > Quality and Process > Legacy Control Charts > Runs Chart.

3. Select Weight and click Process.

4. Select Sample and click Sample Label.

5. Click OK.

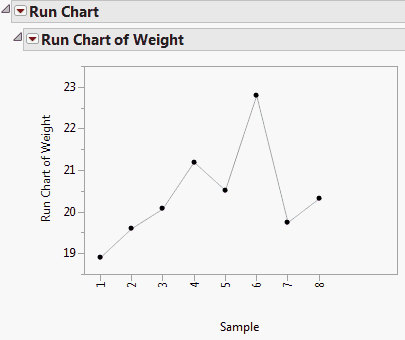

Figure 12.17 Runs Chart
