Image shown hereAlign Shapes

1. To vertically align the shapes for Hard Drives and Peripherals, select the components:

Hard Drives

Peripherals

Tip: To select shapes, drag the cursor around the shapes or press Shift and click each shape.

2. With the shapes selected, right-click one of the shapes and select Align Selected Vertices Vertically.

3. To horizontally align the remaining shapes, select the following components:

Start

Power Supply

CPU

Join

Input Devices

Monitor

End

4. With the shapes selected, right-click one of the shapes and select Align Selected Vertices Horizontally.

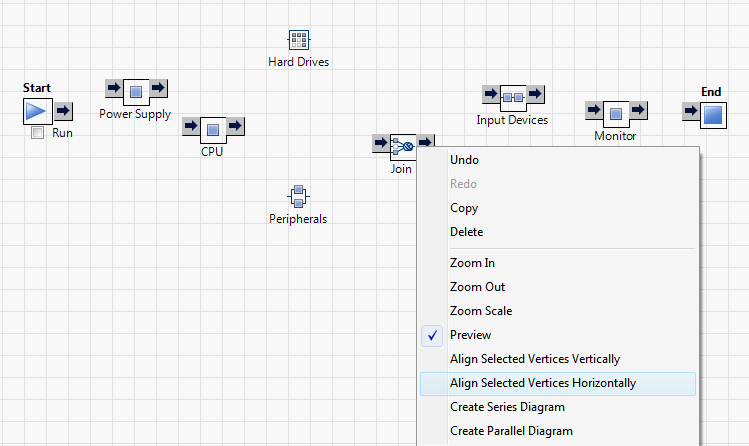

Figure 11.8 Align Shapes Horizontally

Align Shapes Horizontally

5. Proceed with Connect Shapes.
