Launch the Bivariate Platform

To investigate the relationship between two continuous variables in a bivariate analysis, do the following:

1. Select Analyze > Fit Y by X.

2. Enter a continuous column for Y, Response.

3. Enter a continuous column for X, Factor.

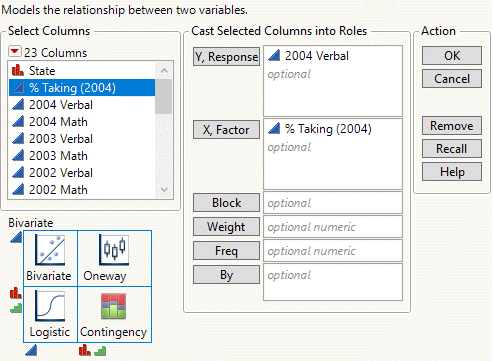

Figure 5.3 The Bivariate Launch Window

The word Bivariate appears above the diagram, to indicate that you are performing a bivariate analysis.

Note: You can also launch a bivariate analysis from the JMP Starter window. Select View > JMP Starter > Basic > Bivariate.

For more information about this launch window, see Introduction to Fit Y by X. For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.
