Launch the Fit Y by X Platform

Launch the Fit Y by X platform by selecting Analyze > Fit Y by X.

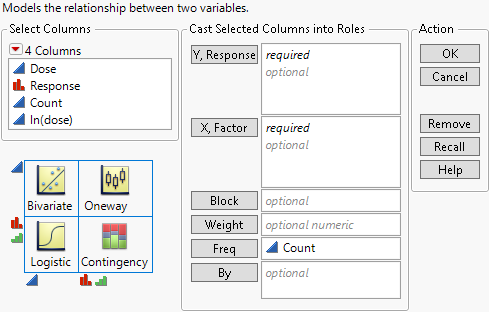

Figure 4.2 The Fit Y by X Launch Window

For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.

Bivariate, Oneway, Logistic, Contingency

This grid shows which analysis results from the different combinations of data types. Once you have assigned your columns, the applicable platform appears as a label above the grid.

Block

(Optional. Applicable only for Oneway and Contingency.):

– For the Oneway platform, specifying a Block variable identifies a second factor, which forms a two-way analysis without interaction. In the Oneway plot, the values of the Y variable are centered by the Block variable. If there are equal counts in each block by group cell, the available Oneway platform options are adapted to the two-way analysis setting. If there are unequal counts in the block by group cells, a Fit Model report is shown below the Oneway plot and the Oneway platform options are not available.

– For the Contingency platform, specifying a Block variable identifies a second factor and performs a Cochran-Mantel-Haenszel test.

For more information about launch windows, see Launch Windows in Platforms in Using JMP.
