Design of Experiments Guide > Column Properties > RunsPerBlock > Example of the RunsPerBlock Column Property
Publication date: 06/21/2023

Example of the RunsPerBlock Column Property

This example demonstrates how to view the RunsPerBlock column property.

1. Select Help > Sample Data Folder and open Design Experiment/Wine Data.jmp.

2. Click the asterisk next to Rater in the columns panel and select Design Role.

Notice that the Design Role is set to Blocking.

3. Click Cancel.

4. Click the asterisk next to Rater in the columns panel and select RunsPerBlock.

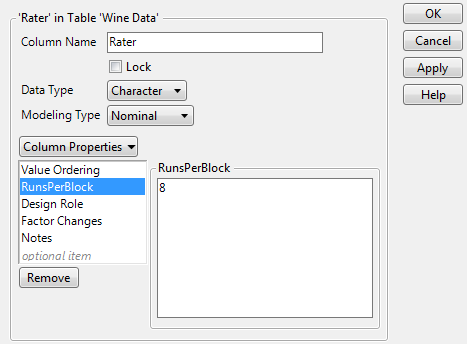

Figure A.34 RunsPerBlock Column Property Panel for RaterĀ

RunsPerBlock Column Property Panel for Rater

Notice that the value of RunsPerBlock is 8. The design constructed by the DOE Dialog script has 40 runs. Since there are five raters, JMP constructs a design with 40/5 = 8 runs for each rater.
