Statistical Details for the Gauge Attribute Chart

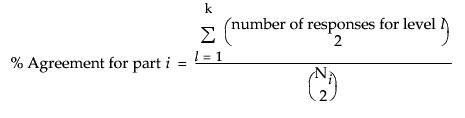

In the Gauge Attribute chart that plots all X, Grouping variables on the horizontal axis, the percent Agreement is calculated as follows:

Equation shown here

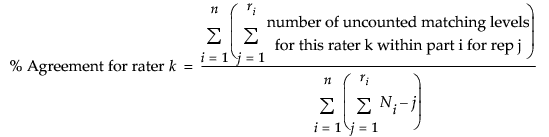

In the Gauge Attribute chart that plots all Y, Response variables on the horizontal axis, the percent Agreement is calculated as follows:

Equation shown here

Note the following:

• n = number of parts (grouping variables)

• ri = number of reps for part i (i = 1,...,n)

• m = number of raters

• k = number of levels

• Ni = m x ri. Number of ratings on part i (i = 1,...,n). This includes responses for all raters, and repeat ratings on a part. For example, if part i is measured 3 times by each of 3 raters, then Ni is 3 x 3 = 9.

For example, consider the following table of data for three raters, each having three replicates for one part.

Table 7.1 Three Replicates for Raters A, B, and C

A

B

C

1

1

1

1

2

1

1

0

3

0

0

0

Using this table, you can make these calculations:

% Agreement =Equation shown here

% Agreement [rater A] = percent Agreement [rater B] = Equation shown here and

% Agreement [rater C] =Equation shown here
