Type 1 Gauge Analysis
Evaluate a Continuous Measurement Process Using the Type 1 Method
A Type 1 Gauge analysis is a measurement systems analysis that determines whether a measurement system, or gauge, is repeatable. Specifically, the analysis determines if a measurement system can repeatedly measure a part and obtain measurements that are close to a known reference standard.
The Type 1 Gauge platform produces a run chart, histogram, and metrics such as Cg and CgK that are useful in assessing gauge repeatability.

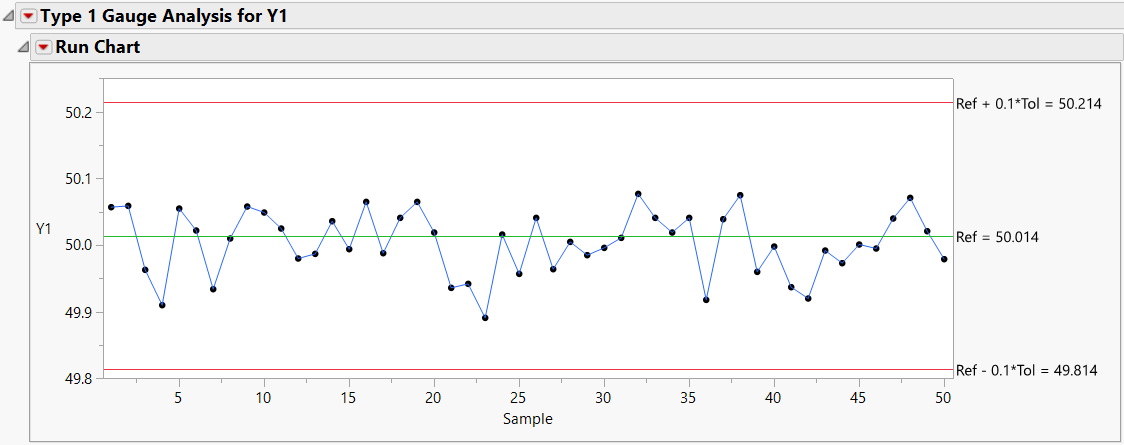

Figure 5.1 Example of a Type 1 Gauge Analysis
Contents
Example of Type 1 Gauge Analysis
Launch the Type 1 Gauge Platform
Data Format
The Type 1 Gauge Study Report
Run Chart
Summary and Capability Statistics Table
Type 1 Gauge Study Options
Type 1 Gauge Analysis Report Options
