Example of a CDF Plot

Use the Oneway platform to produce a cumulative distribution function (CDF) plot.

1. Select Help > Sample Data Folder and open Analgesics.jmp.

2. Select Analyze > Fit Y by X.

3. Select pain and click Y, Response.

4. Select drug and click X, Factor.

5. Click OK.

6. Click the Oneway Analysis red triangle menu and select CDF Plot.

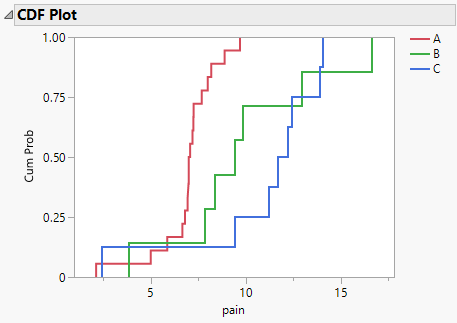

Figure 6.32 Example of a CDF Plot

The CDF plot has a curve for each level of the X variable.
