Example of a Run Chart

In this example, you use the Run Chart launch window to launch Control Chart Builder. Run charts display a column of data as a connected series of points.

1. Select Help > Sample Data Folder and open Stock Averages.jmp.

2. Select Analyze > Quality and Process > Control Chart > Run Chart.

3. Select Close and click Y.

4. Click OK.

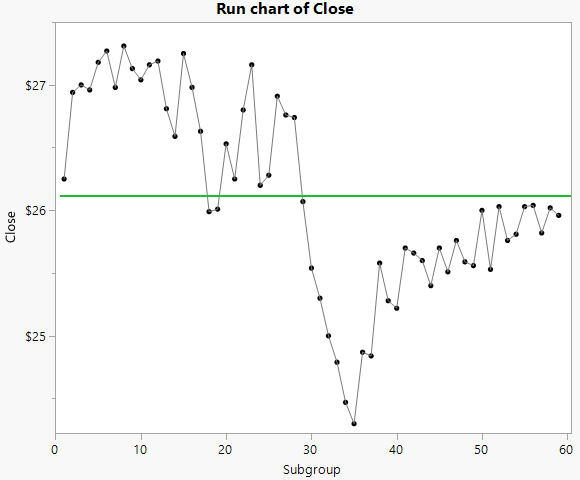

Figure 3.25 Run Chart for Stock Averages Closing Price
