Example of XBar and R Charts with Varying Subgroup Sizes

In this example, you use the interactive workspace in Control Chart Builder to create XBar and R charts using data that have varying subgroup sizes.

1. Select Help > Sample Data Folder and open Quality Control/Coating.jmp.

2. Select Analyze > Quality and Process > Control Chart Builder.

3. Drag Weight 2 to the Y role.

4. Drag Sample to the Subgroup role (at bottom).

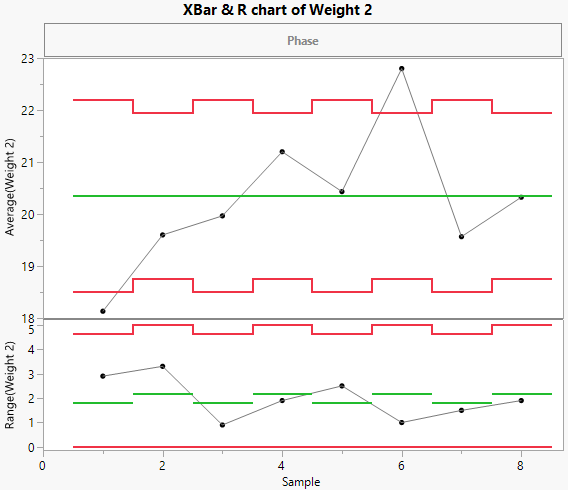

Figure 3.22 XBar and R Charts for Varying Subgroup Sizes

Weight 2 has several missing values in the data, so the chart has uneven limits. Although each sample has the same number of observations, samples 1, 3, 5, and 7 each have a missing value.

Instead of viewing a line connecting the averages of each sample, you can switch to viewing box plots at each sample.

5. In the Points[1] outline, deselect the Show Connect Line option.

6. In the Points[1] outline, select the Box Plots option.

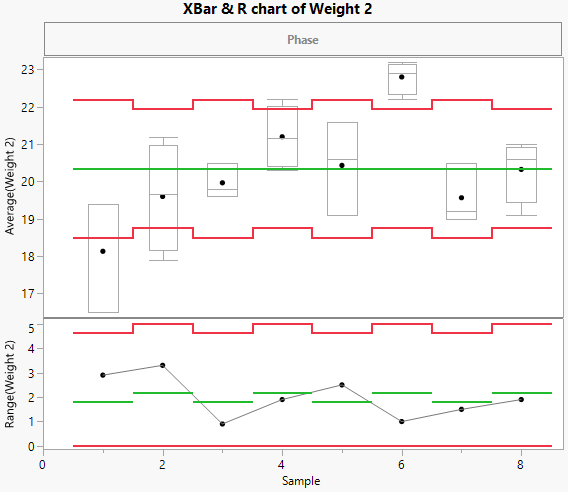

Figure 3.23 XBar and R Chart with Box Plots
