Change the Selection Mode of Markers

When you select markers on a JMP graph, only the selected markers are highlighted. You can change how markers are highlighted on the current graph. The options are applied to the top two triangles in the following figure.

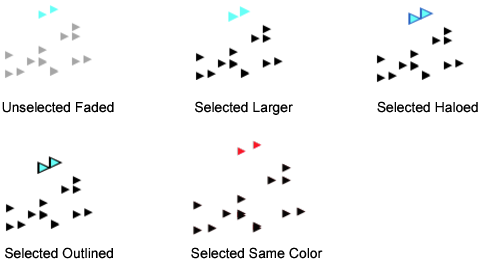

Figure 9.23 Examples of Highlighted Triangular Markers

To change the marker highlighting on the current graph, follow these steps:

1. Right-click anywhere in a graph and select Marker Selection Mode.

2. Select one of the following options:

Preferred Mode

The Marker Selection Mode that is selected on the Graphs page in the JMP preferences. The default value is Unselected Faded.

Unselected Faded

Only the selected markers are highlighted. Everything else is dimmed by the percent specified by Faded amount for unselected markers in Preferences > Graphs.

Selected Larger

The selected markers are larger than the deselected markers.

Selected Haloed

The edges of the selected markers are outlined in blue.

Selected Outlined

The selected markers are outlined in a dark color.

Selected Same Color

The selected markers are shaded with the Marker Selection Color that is selected in the Graphs preferences.
