In the Reliability Block Diagram platform, a system diagram usually contains many individual components. The reliability functions of each of these components can be examined in overlay plots. You can view component overlay plots for each system diagram that is listed in the Designs and the Library panels. This section describes the component overlay plots. These plots appear in the profilers panel of the report.

Note: Check boxes in the legend of each component plot enable you to select which components to view in that plot.

Image shown hereComponent Distribution Functions

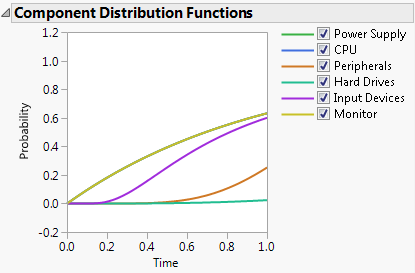

Select Show Component Distribution Functions to show an overlay plot of the distribution functions for the components of the Reliability Block Diagram.

Figure 12.22 Component Distribution Functions

Component Distribution Functions

Image shown hereComponent Reliability Functions

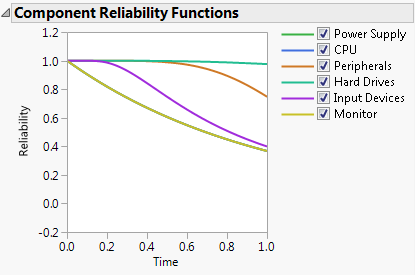

Select Show Component Reliability Functions to show an overlay plot of the reliability functions for the components of the Reliability Block Diagram.

Figure 12.23 Component Reliability Functions

Component Reliability Functions

Image shown hereComponent Density Functions

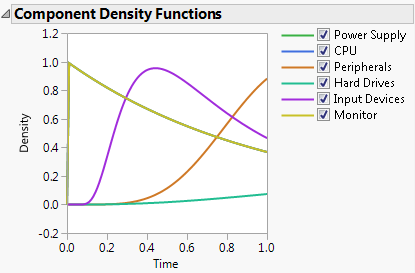

Select Show Component Density Functions to show an overlay plot of the density functions for the components of the Reliability Block Diagram.

Figure 12.24 Component Density Functions

Component Density Functions

Image shown hereComponent Hazard Functions

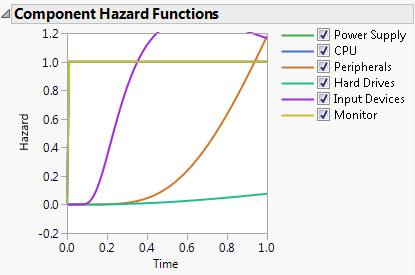

Select Show Component Hazard Functions to show an overlay plot of the hazard functions for the components of the Reliability Block Diagram.

Figure 12.25 Component Hazard Functions

Component Hazard Functions

Image shown hereComponent Cumulative Hazard Functions

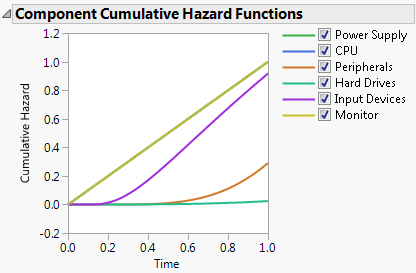

Select Show Component Cumulative Hazard Functions to show an overlay plot of the cumulative hazard functions for the components of the Reliability Block Diagram.

Figure 12.26 Component Cumulative Hazard Functions

Component Cumulative Hazard Functions
