Example of a Normal Quantile Plot

Use the Oneway platform to produce a normal quantile plot.

1. Select Help > Sample Data Folder and open Big Class.jmp.

2. Select Analyze > Fit Y by X.

3. Select height and click Y, Response.

4. Select sex and click X, Factor.

5. Click OK.

6. Click the Oneway Analysis red triangle menu and select Normal Quantile Plot > Plot Actual by Quantile.

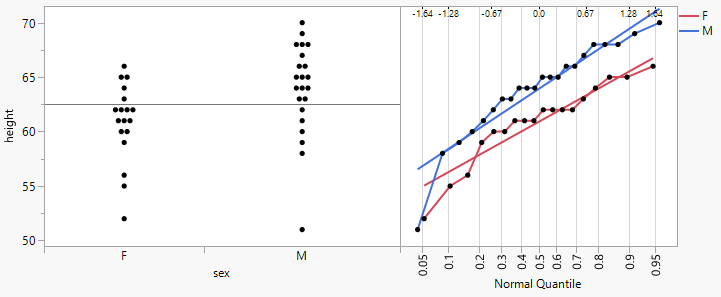

Figure 6.31 Example of a Normal Quantile Plot

Note the following:

• The Line of Fit appears by default.

• The data points track very closely to the line of fit, indicating a normal distribution.
