Example of Deprecated Dialog

Compare the previous New Window() example to this example of the deprecated Dialog().

dlg = Dialog(
	Title( "Dialog Example" ),
	H List(
		V List(
			"Radio Frequency Embolism Projection",
			Lineup( 2,
				"Lower Spec Limit", lsl = Edit Number( 230 ),
				"Upper Spec Limit", usl = Edit Number( 340 ),
				"Threshold", threshold = Edit Number( 275 )
			),
			H List(
				V List(
					"Type of Radio",
					type = Radio Buttons( "RCA", "Matsushita", "Zenith", "Sony" )
				),
				V List(
					"Type of Antenna",
					antenna = Radio Buttons( "Dish", "Helical", "Polarizing",
						"Radiant Array" )
				)
			),
			synch = Check Box( "Emission Synchronization", 0 ),
			"Title for plot",
			title = Edit Text( "My projection" ),
			H List(
				"Quality",
				quality = Combo Box( "Fealty", "Loyalty", "Piety", "Obsequiousness"
				)
			)
		),
		V List( Button( "OK" ), Button( "Cancel" ) )
	)
);
If( dlg["Button"] == 1,
	Show(
		"OK",
		dlg["lsl"],
		dlg["usl"],
		dlg["threshold"],
		dlg["type"],
		dlg["antenna"],
		dlg["synch"],
		dlg["title"],
		dlg["quality"]
	),
	Show( "Canceled" )
);

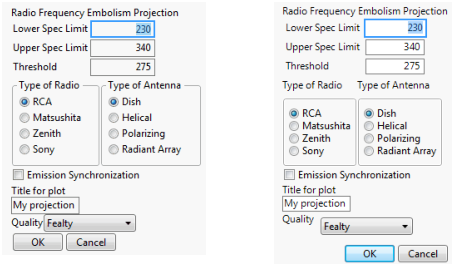

Figure 11.38 Results from New Window (left) and the Deprecated Dialog (right)

Results from New Window (left) and the Deprecated Dialog (right)

Note: Use Return Result to get the same result in New Window() as with the deprecated Dialog(). See Construct a Modal Window for an example.
