Factor Analysis Model Fit Options
The Factor Analysis Model Fit red triangle menu contains the following options:
Prior Communality
(Available only for Common Factor Analysis.) Shows or hides an initial estimate of the communality for each variable. For a given variable, this estimate is the squared multiple correlation coefficient (SMC), or RSquare, for a regression of that variable on all other variables.
Note: Heywood cases arise when a communality is equal to or exceeds 1. This implies that a unique factor variance (i.e., residual variance not accounted by the common factor) is negative. Heywood cases are handled by putting a lower bound on the unique variance or upper bound on communality.
Eigenvalues
(Available only for Common Factor Analysis.) Shows or hides the eigenvalues of the reduced correlation matrix and the percent of the common variance for which they account. The reduced correlation matrix is the correlation matrix with its diagonal entries replaced by the communality estimates. The eigenvalues indicate the common variance explained by the factors. The Cum Percent can exceed 100% because the reduced correlation matrix is not necessarily positive definite and can have negative eigenvalues.
Note the table indicates the number of factors retained for analysis.
Unsorted and Unrotated Factor Loading
Shows or hides the factor loading matrix prior to sorting and rotation.
Unrotated Factor Loading
Shows or hides the factor loading matrix prior to rotation. Factor loadings measure the influence of a common factor on a variable. Because the unrotated factors are orthogonal, the factor loading matrix is the matrix of correlations between the variables and the factors. The closer the absolute value of a loading is to 1, the stronger the effect of the factor on the variable.
Use the slider and value to Suppress Absolute Loading Values Less Than the specified value in the table. Suppressed values appear dimmed according to the setting specified by Dim Text.
Use the Dim Text slider and value to control the table’s font transparency gradient for factor values less in absolute value than the specified Suppress Absolute Loading Values Less Than value.

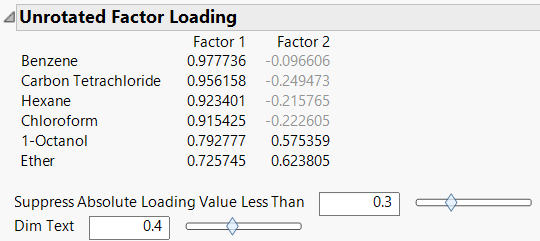

Figure 9.7 Unrotated Factor Loading with Dim Text Controls
Note: The Unrotated Factor Loading matrix is ordered so that variables associated with the same factor appear next to each other.
Rotation Matrix
Shows or hides the values used for rotating the factor loading plot and the factor loading matrix.
Interfactor Correlations
(Available only for oblique rotations.) Shows or hides the matrix of correlations between factors.
Target Matrix
(Available only for the Promax rotation.) Shows or hides the matrix to which the varimax factor pattern is rotated.
Factor Structure
(Available only for oblique rotations.) Shows or hides the matrix of correlations between variables and common factors.
Final Communality Estimates
Shows or hides estimates of the communalities after the factor model has been fit. When the factors are orthogonal, the final communality estimate for a variable equals the sum of the squared loadings for that variable.
Standard Score Coefficients
Shows or hides a table of the multipliers that are used to estimate factor scores when saving rotated factors to the source data table.
Variance Explained by Each Factor
(Available only for orthogonal rotations.) Shows or hides the variance, percent, and cumulative percent, of common variance that is explained by each rotated factor.
Variance Explained by Each Factor Ignoring Other Factors
(Available only for oblique rotations.) Shows or hides the variance and percent of common variance explained by each rotated factor regardless of other factors.
Significance Test
(Available only for the Maximum Likelihood factoring method.) Provides the results of two Chi-square tests.
The first test is for H0: No common factors. This null hypothesis indicates that none of the common factors explain the intercorrelations among the variables. This test is Bartlett’s Test for Sphericity, whose null hypothesis is that the correlation matrix of the factors is an identity matrix (Bartlett, 1954).
The second test is for H0: N factors are sufficient, where N is the specified number of factors. Rejection of this null hypothesis indicates that more factors might be required to explain the intercorrelations among the variables (Bartlett, 1954). The Criterion is the log-likelihood objective function value.
Measures of Fit
(Available only for the Maximum Likelihood factoring method.) Shows or hides the measures of fit, including Chi-Square without Bartlett’s Correction, AIC, BIC, Tucker-Lewis’s Index, and the root mean square error of approximation.
Measures of Factor Scores
Shows or hides the measures of factor score determinacy, including Multiple R, Multiple R Square, and Minimum Correlation scores. These measures are used to evaluate if the factor scores might be useful for secondary analyses.
Unsorted and Rotated Factor Loading
Shows or hides the unsorted factor loading matrix after rotation.
Rotated Factor Loading
Shows or hides the factor loading matrix after rotation. If the rotation is orthogonal, these values are the correlations between the variables and the rotated factors.
Use the slider and value to Suppress Absolute Loading Values Less Than the specified value in the table. Suppressed values appear dimmed according to the setting specified by Dim Text.
Use the Dim Text slider and value to control the table’s font transparency gradient. The lower the value, the more transparency the font for factor values less in absolute value than the specified Suppress Absolute Loading Values Less Than value.

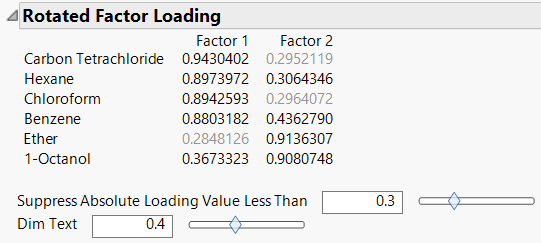

Figure 9.8 Rotated Factor Loading with Dim Text Controls
Note: The Rotated Factor Loading matrix is ordered so that variables associated with the same factor appear next to each other.
Factor Loading Plot
Shows or hides a plot of the rotated factor loadings. When more than two factors are modeled, the Factor Loading Plot is a matrix of plots.
Score Plot
Shows or hides a scatterplot of the estimated factor scores. When more than two factors are modeled, the Score Plot is a matrix of plots.
Score Plot with Imputation
(Available only if there are missing values.) Shows or hides a scatterplot of the estimated factor scores with imputed values for missing values.
Display Options
Enables you to show or hide arrows on the loading plots.
Save Factor Scores
Saves new formula columns to the original data table. The new columns contain the formulas for the factor scores, which are estimated by the Thurstone method.
Note: The formulas cannot evaluate rows with missing values.
Copy Model Specifications for SEM
Copies the factor definitions to the clipboard. You can then paste the definitions into the SEM platform. The SEM JSL script contains the fixed loadings based on the final rotated loading matrix. The script includes only loadings that are greater than the Suppress Absolute Loading Value Less Than threshold.
Save Factor Scores with Imputation
(Available for models with missing data.) Saves new formula columns to the original data table. The new columns contain the formulas for the factor scores with imputed values for missing values.
Remove Fit
Removes the fit model results from the Factor Analysis report. This option enables you to change the Model Launch configuration for a new report.
