Example of Deprecated Dialog

Compare the previous New Window() example to this example of the deprecated Dialog().

dlg = Dialog(

	Title( "Dialog Example" ),

	H List(

		V List(

			"Radio Frequency Embolism Projection",

			Lineup( 2,

				"Lower Spec Limit", lsl = Edit Number( 230 ),

				"Upper Spec Limit", usl = Edit Number( 340 ),

				"Threshold", threshold = Edit Number( 275 )

			),

			H List(

				V List(

					"Type of Radio",

					type = Radio Buttons( "RCA", "Matsushita", "Zenith", "Sony" )

				),

				V List(

					"Type of Antenna",

					antenna = Radio Buttons( "Dish", "Helical", "Polarizing",

						"Radiant Array" )

				)

			),

			synch = Check Box( "Emission Synchronization", 0 ),

			"Title for plot",

			title = Edit Text( "My projection" ),

			H List(

				"Quality",

				quality = Combo Box( "Fealty", "Loyalty", "Piety", "Obsequiousness"

				)

			)

		),

		V List( Button( "OK" ), Button( "Cancel" ) )

	)

);

If( dlg["Button"] == 1,

	Show(

		"OK",

		dlg["lsl"],

		dlg["usl"],

		dlg["threshold"],

		dlg["type"],

		dlg["antenna"],

		dlg["synch"],

		dlg["title"],

		dlg["quality"]

	),

	Show( "Canceled" )

);

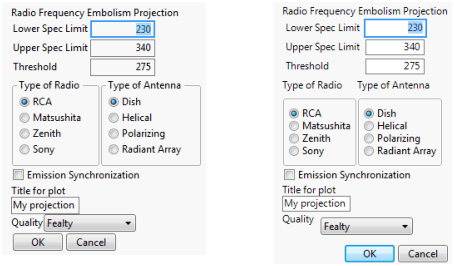

Results from New Window (left) and the Deprecated Dialog (right)

Note: Use Return Result to get the same result in New Window() as with the deprecated Dialog(). See Construct a Modal Window for an example.
