Evaluate Design Window
The Evaluate Design window consists of two parts. See Evaluate Design Window Showing All Possible Outlines, where all outline nodes are closed.
•
The Factors, Model, Alias Terms, and Design outlines define the model and design.
•
The Design Evaluation outline provides results that describe the properties of your design.

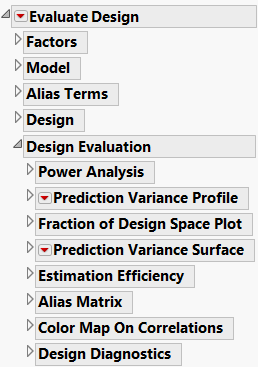

Evaluate Design Window Showing All Possible Outlines
The Factors, Model, Alias Terms, and Design outlines contain information that you enter about the factors, assumed model, potentially aliased effects of interest, and the actual design. JMP populates these outlines using your selections in the launch window and the design table. However, you can modify the effects in the Model and Alias Terms outlines. These outlines are described in the following sections:
•
Factors
•
Model
•
Alias Terms
•
Design
Once you have made your specifications, the Design Evaluation outlines are updated. You can open these outlines to see reports or control windows that provide information about your design. These outlines are described in the following sections:
•
Power Analysis
•
Prediction Variance Profile
•
Fraction of Design Space Plot
•
Prediction Variance Surface
•
Estimation Efficiency
•
Alias Matrix
•
Color Map on Correlations
•
Design Diagnostics
