Example of Making a Journal for a Presentation
Most people use a presentation application like PowerPoint to give presentations. With JMP journals, you can avoid using a presentation application: all your bullet points can be combined with live links and buttons to help automate the analyses that you want to show. Interactivity is also maintained in reports.
Follow this example to create a presentation using a journal.
1.
Select File > New > Journal.
2.
Right-click in the journal. Start your outline by selecting Add Outline Item.
3.
Enter the title of the presentation “My Bivariate Demo.”
Add an Outline Item
A presentation should have outline nodes. The nodes are nested, opened, and closed in sequence, as you give the presentation.
4.
Add bullet points into the outline by clicking the red triangle in the My Bivariate Demo title bar and selecting Add Text Item.
5.
Enter the text shown in the following figure.
6.
Select the Bullet Point check box and click OK.

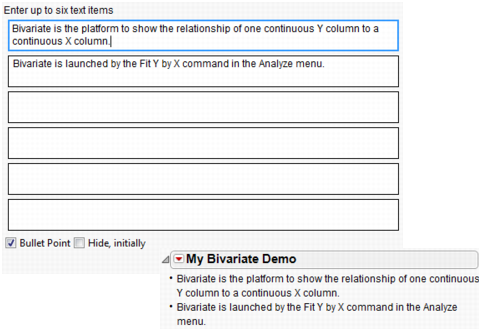

Add Text Item
Now add a window reference as a link. These links lets you open a file with one click during the presentation.
7.
Select Help > Sample Data Library and open Big Class.jmp.
8.
Click the red triangle in the My Bivariate Demo title bar and select Add Window Reference.
9.
Select Big Class and click OK.

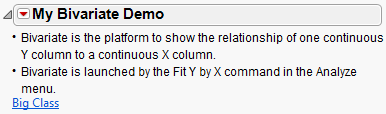

Add Window Reference
10.
Click the window reference to verify the link.
11.
Display the window reference as a button by right-clicking the link and deselecting Underline Style.

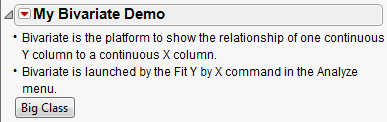

Change the Link to a Button
