Basic Analysis • Logistic Analysis • Example of Nominal Logistic Regression

•

This example uses the Penicillin.jmp sample data table. The data in this example comes from an experiment where 5 groups, each containing 12 rabbits, were injected with streptococcus bacteria. Once the rabbits were confirmed to have the bacteria in their system, they were given different doses of penicillin. You want to find out whether the natural log (In(dose)) of dosage amounts has any effect on whether the rabbits are cured.

Select Help > Sample Data Library and open Penicillin.jmp.

Select Analyze > Fit Y by X.

Select Response and click Y, Response.

Select In(Dose) and click X, Factor.

Notice that JMP automatically fills in Count for Freq. Count was previously assigned the role of Freq.

Click OK.

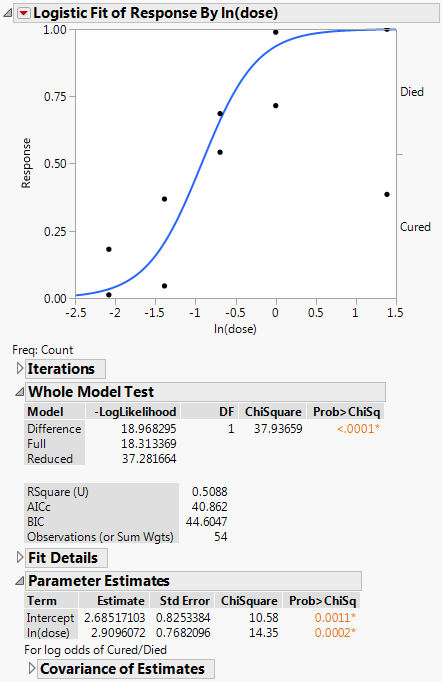

Example of Nominal Logistic Report

The plot shows the fitted model, which is the predicted probability of being cured, as a function of ln(dose). The p-value is significant, indicating that the dosage amounts have a significant effect on whether the rabbits are cured.

Tip: To change the response level that is analyzed, use the Value Ordering column property.

•
