Navigate JMP Reports

Reports in JMP are built in a hierarchical manner by nesting and concatenating different types of rectangular boxes called display boxes. This section introduces JMP reports and then discusses how to navigate reports, extract data from them, and customize them.

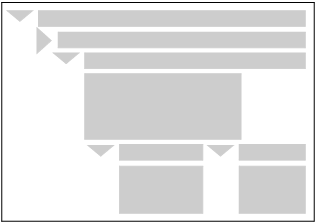

Common Display Boxes in JMP Reports shows three common display boxes in generated JMP reports.

Common Display Boxes in JMP Reports
Outline Boxes create an outline hierarchy.
Picture Boxes combine axes, frames, and labels to make graphs.
Table Boxes are special H List Boxes whose elements are string and number columns.

The hierarchical (or parent-child) relationships between display boxes help determine the sizing. The outermost display box is the parent; the inner display boxes are children. When a report is displayed, the parent display box detects the size of the last child box (the leaf) and then detects the size of the next child from the bottom up. The size is detected for each box on the way back up the tree. Then the positioning of the boxes takes places from the top down so that the boxes can be shown in a tidy arrangement.

The hierarchical (or parent-child) relationships between display boxes form a tree of display boxes, called the display tree. For (parent) boxes that contain other (child) boxes, the parent box’s size is determined by the sizes of its child boxes rather than some fixed size, which keeps the whole display adaptive. Similarly, positions of boxes are determined by positions of the boxes before them rather than using fixed positions. In tree terminology, the sizing is bottom-up and the positioning is top-down.

•
