Right-Click Menus

Right-click on a highlighted node to modify text, insert new nodes, change the diagram type, and more. Note the following:

•

Right-click on a title to change the font and color, positioning, visibility, or formatting.

•

Click and highlight a node to rename it.

•

Click and drag a node to move it.

The Text menu contains the following options:

Select the font of the text or numeric characters.

Select the color of the text or numeric characters.

Rotate Left, Rotate Right, Horizontal

Rotates the text or numbers to be horizontal, 90 degrees left, or 90 degrees right.

Use the Insert menu to insert items onto existing nodes. The Insert menu contains the following options:

Inserts a new node to the right of the highlighted node. For example, Insert Before inserts Child 1.5 before Child 2.

Inserts a new node to the left of the highlighted node. For example, Insert After inserts Child 3 after Child 2.

Inserts a new node at a level above the current node. For example, Insert Above inserts Grandparent at a level above Parent.

Inserts a new node at a level below the current node. For example, Insert Below inserts Grandchild at a level below Child 2.

Use the Move menu to move nodes or branches. The Move menu contains the following options:

Moves the highlighted node to the first position under its parent.

Moves the highlighted node to the last position under its parent.

Moves the highlighted node to the opposite side of its parent line.

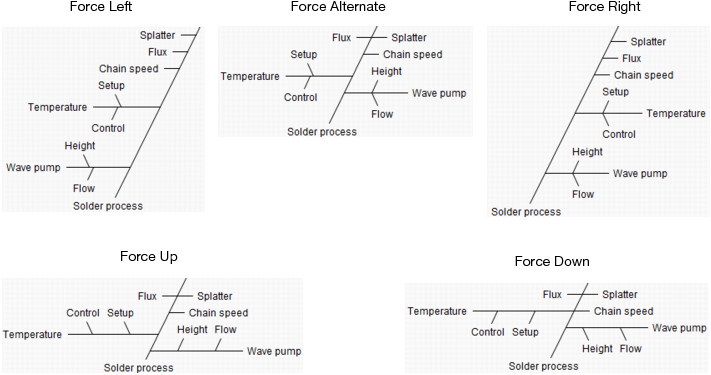

Makes all horizontally drawn elements appear to the left of their parent.

Makes all horizontally drawn elements appear to the right of their parent.

Makes all vertically drawn elements appear above their parent.

Makes all vertically drawn elements appear below their parent.

Force Alternate

Draws children on alternate sides of the parent line.

Other Menu Options

The right-click menu for a highlighted node also contains these options:

Changes the entire chart type to Fishbone, Hierarchy, or Nested.

Disables all other commands except Move and Change Type.

Text Wrap Width

Specifies the width of labels where text wrapping occurs.

Make Into Data Table

Converts the currently highlighted node into a data table. Convert the all nodes by highlighting the whole diagram (effect).

Shows the highlighted node.

Deletes the highlighted node and all of its children.

•
