Example of a Contour Plot in Graph Builder

You can create the same contour plot shown in Figure 6.2 using Graph Builder.

1.

Select Help > Sample Data Library and open Little Pond.jmp.

2.

Select Graph > Graph Builder.

3.

Click and drag the X coordinate to the X zone.

4.

Click and drag the Y coordinate to the Y zone.

5.

Click and drag depth, Z, to the Color zone.

6.

Click the Contour

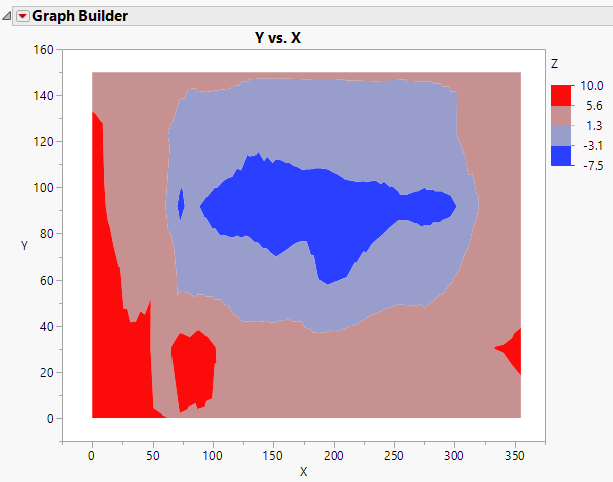

Figure 6.3 Contour Plot in Graph Builder

Notice the plot produced from the Contour platform looks slightly different than the plot produced using Graph Builder.

•
