Component Plots

A system diagram usually contains many individual components. The reliability functions of each of these components can be examined in overlay plots. You can view component overlay plots for each system diagram that is listed in the Designs and the Library panels. This section describes the component overlay plots. These plots appear in the profilers panel of the report.

Note: Check boxes in the legend of each component plot enable you to select which components to view in that plot.

Component Distribution Functions

Select Show Component Distribution Functions to show an overlay plot of the distribution functions for the components of the Reliability Block Diagram.

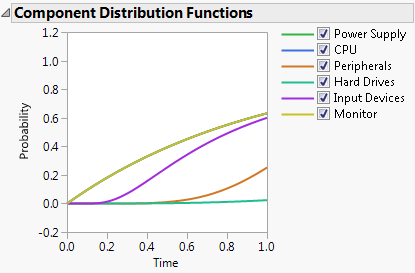

Figure 11.24 Component Distribution Functions

Component Reliability Functions

Select Show Component Reliability Functions to show an overlay plot of the reliability functions for the components of the Reliability Block Diagram.

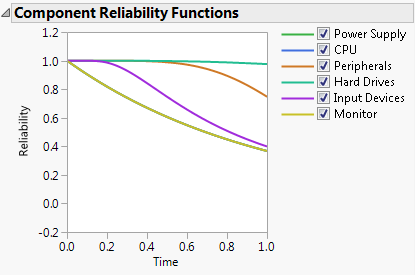

Figure 11.25 Component Reliability Functions

Component Density Functions

Select Show Component Density Functions to show an overlay plot of the density functions for the components of the Reliability Block Diagram.

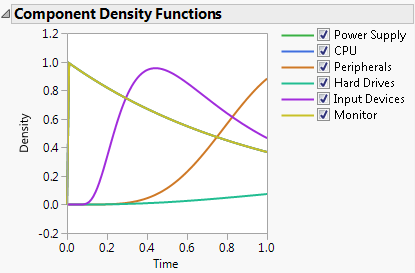

Figure 11.26 Component Density Functions

Component Hazard Functions

Select Show Component Hazard Functions to show an overlay plot of the hazard functions for the components of the Reliability Block Diagram.

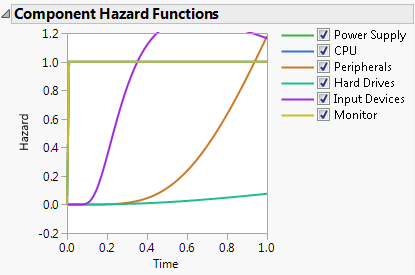

Figure 11.27 Component Hazard Functions

Component Cumulative Hazard Functions

Select Show Component Cumulative Hazard Functions to show an overlay plot of the cumulative hazard functions for the components of the Reliability Block Diagram.

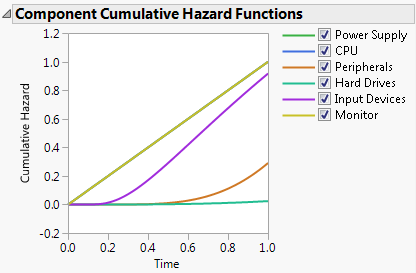

Figure 11.28 Component Cumulative Hazard Functions
