Contour Plots

View Multidimensional Relationships in Two Dimensions

The Contour Plot command in the Graph menu constructs contours of a response in a rectangular coordinate system. A contour plot shows a three-dimensional surface in two dimensions. Contours delineate changes in the third dimension.

Here are some of the options available with the Contour platform:

•

specify the number of contour levels

•

choose to plot contour lines or filled contours

•

show or hide data points

•

label contours with response values

•

define and use a custom coloring scheme

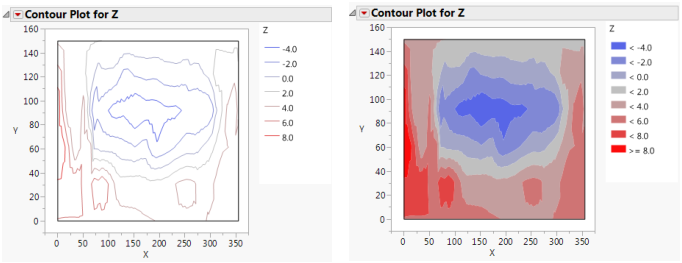

Figure 7.1 Examples of Contour Plots
