Create a Range Chart
A range chart shows the range between two values. In this example, use a range chart to compare the profits and sales of differently sized companies.
1.
Select Help > Sample Data Library and open Companies.jmp.
2.
Select Graph > Legacy > Chart.
3.
Select Size Co and click Categories, X, Levels.
4.
Select Profits ($M) and Sales ($M) and click Statistics.
5.
Select Mean from the menu of statistics.
6.
Click OK.
7.
Select Range Chart from the red triangle menu for Chart.

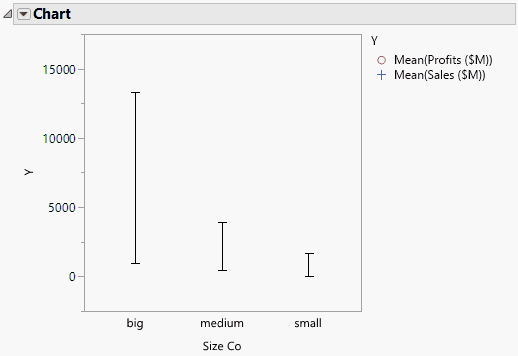

Figure 13.18 Example of a Range Chart
The chart shows a much larger difference between profits and sales than that for medium and small companies.
